0,5 ct shank M8 x1 L=55 Single point diamond dresser Weinig
This dressing tool is intended for high effeciency dressing of conventional vitrified/ceramic bond grinding wheel made of aluminium oxide and silicon carbides in Weinig machine (replacemant).
Type: single point, thread shank M8x1 Lenght L=55[mm], M1030/SP
Diamond size: 0,5 ct
Diamond quality: selected, very good industrial diamond

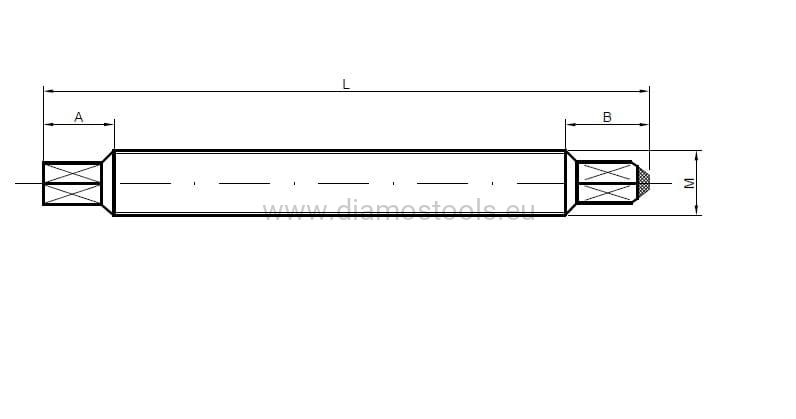

Dimensions: L=55 [mm]
A=6 [mm]
B=6 [mm]
thread M8x1 [mm]
General information for use:
please note the diamonds are sensitive to knock, impact and thermal shock so take a special care when fitting and use this dressing tool.
Dressers must be clamped short and vibration free. Before start of dressing ensure that coolant is applied into the diamond.
The general infeed: 0,01 – 0,03 mm per stroke
The longitudinal feed depend on the grit size of the grinding wheel
- faste feed result in rough the wheel surface,
- low feed result is smoother the wheel surface.
Wheel's grain size
|
Feed mm/u
|
30-46 (54)
54-120 (150)
180-320
|
0,5-0,65
0,1-0,35
0,02-0,15
|
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
