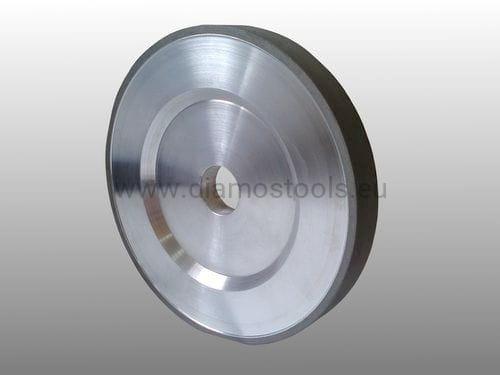

1A1 Ø200x10x5 C75 BW215X Diamond grinding wheel for cemented carbides
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
1A1 - 200 x 10 x 5 x 20 DIA C75 BW215X
Diamond wheel for wet and dry grinding of cemented carbides rods, tools and materials.

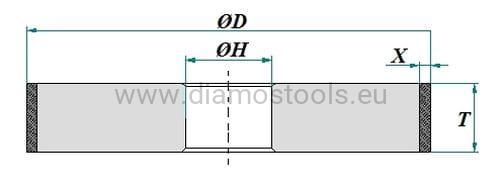

Type: 1A1
| D | T | X | H |
Grain size |
| [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 200 | 10 | 5 | please select | please select |
The grain size: Diamond ( select in the box )
Concentration: C75 ( medium standard )

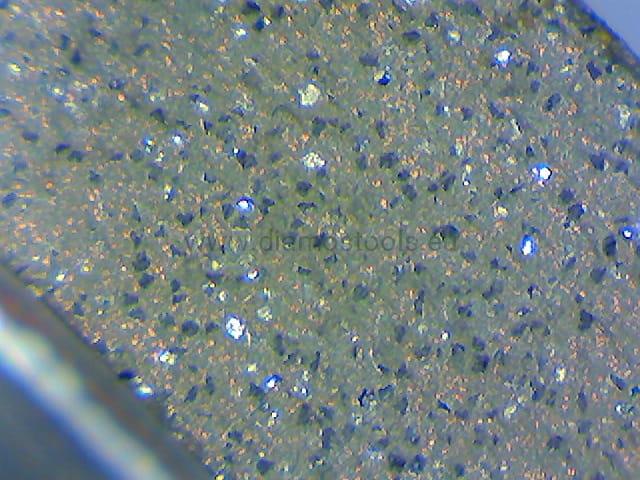

Bond: BW215X ( medium standard resin bond for wet / dry grinding)
Coolant: wet ( recommended ) and dry ( possible )
Application: grinding the all type of cemented carbides
The hole size H (*): ( select in the box ) H7 tolerance
Wheel speed Vmax: 50 [m/s]
Safety standard: EN13236 ( safety standard )
Quality: ISO 9001:2015 ( quality standards )
Remarks: other quality and dimensions are available on request - please contact us.
biuro@diamos.eu and www.diamos.eu
Phone: +48 603 117 776
