1A1R 125x1,0x5x20 DIA126 C3 BX Diamond cut-off wheel for carbide
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

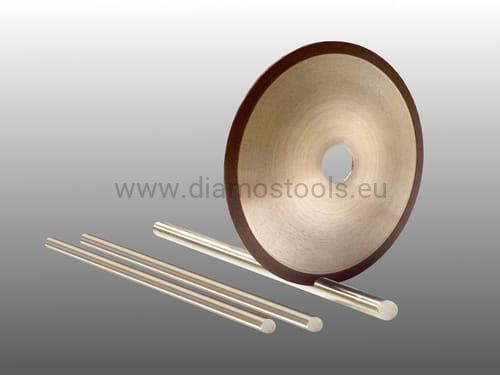

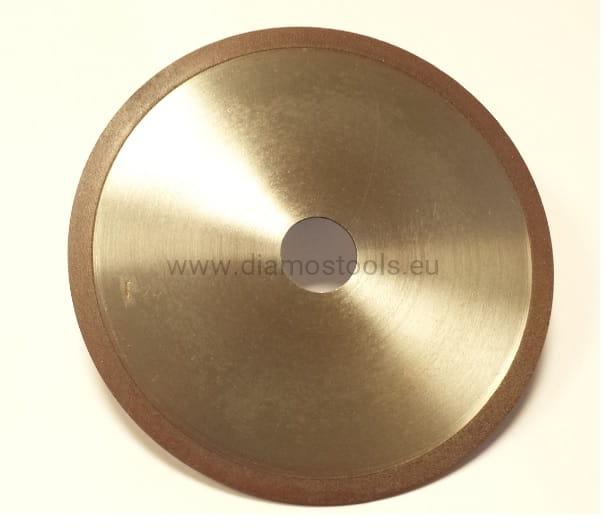

1A1R - 125 x 1 x 5 x 20 DIA126 C3 BX
Diamond wheel for wet cutting of cemented carbides rods, tools and materials.
The parameters of the wheel:
Type: 1A1R diamond cut-off wheel for cemented carbides wet ( possible dry work )
| D | T | X | H | grain size |
| [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 125 | 1 | 5 | 20 | DIA126 |
The grain size: DIA126
Concentration: C3 ( high )
Bond: BX ( hard resin bond for wet cutting )
Coolant: wet ( recommended ) and dry ( possible )
Application: cutting the all type of cemented carbides.
The hole size H (*): 20 ( H7) (*) on request - option
Wheel speed Vmax: 50 [m/s]
Safety standard: EN13236 ( safety standard )
Quality: ISO 9001:2015 ( quality standards )
Remarks: other quality available on request - please contact us:
biuro@diamos.eu and www.diamos.eu
Phone: +48 603 117 776
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
