1A1/WSP 150x10x5x60 Diamond Grinding Wheel for Rondamat
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
1A1/WSP - 150 x 10 x 5 x 60 DIA BW215X Diamond wheel
Diamond wheel for wet and dry grinding of cemented carbides cutter, straight knives with carbides.

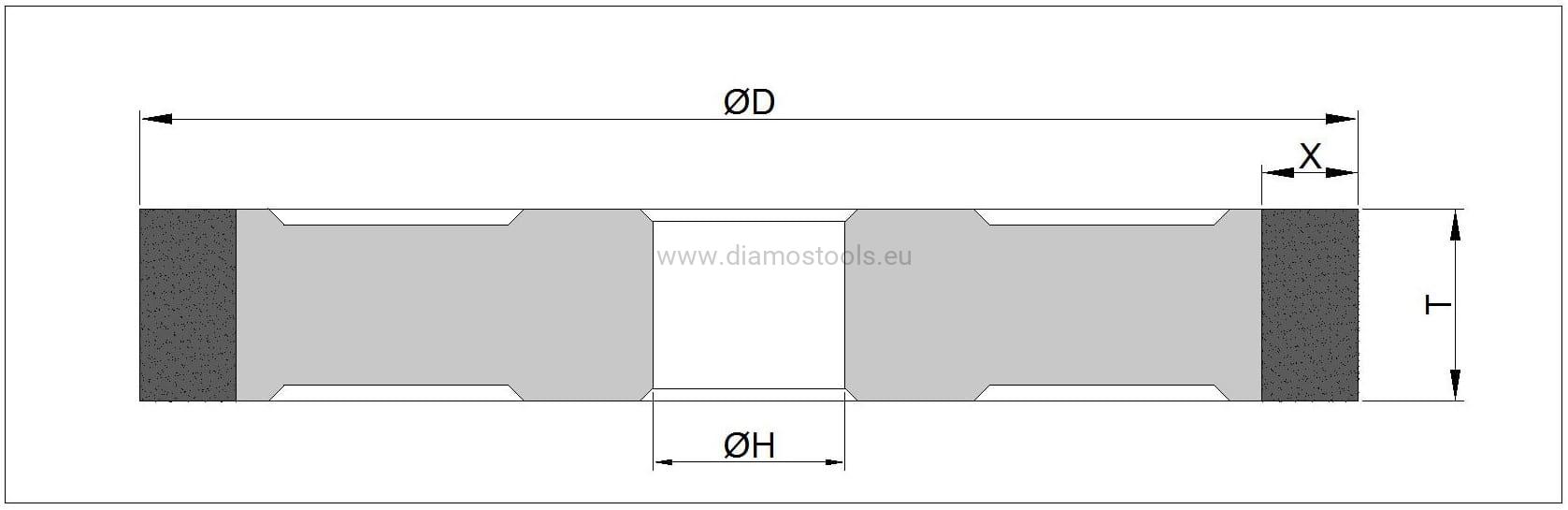

Type: 1A1/WSP
| D | T | X | H | Grain size |
| [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 150 | 10 | 5 | 60(H7) |
DIA126-standard D64 fine sharpening D25 super lapping |
The grain size: Diamond ( select in the box )
Concentration: C75 ( medium standard )
Bond: BW215X ( medium standard resin bond for wet / dry grinding)
Coolant: wet ( recommended ) and dry ( possible )
Application: grinding the all type of cemented carbides on Rondamat 960
The hole size H (*): ( select in the box ) H7 tolerance
Wheel speed Vmax: 50 [m/s]
Safety standard: EN13236 ( safety standard )
Quality: ISO 9001:2015 ( quality standards )
Remarks: other quality and dimensions are available on request - please contact us.
biuro@diamos.eu and www.diamos.eu
Phone: +48 603 117 776
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
