3,2 ct multi point diamond dresser M24DX/2
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Total diamonds content: 3,2 ct (high quality MCD diamond grits)

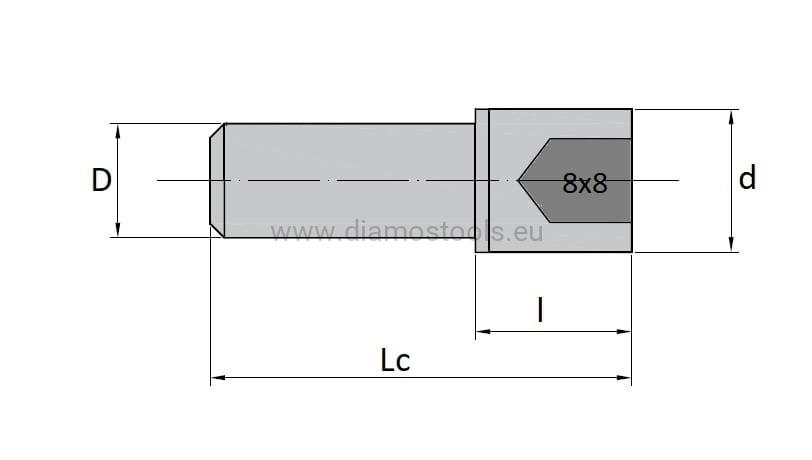

| Shank | Head |
Total lenght Lc |
Diamond insert |
Diamond size | |
| D | d | l | |||
| [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
|
6 -12 |
10 |
12 |
30 (+/- 0,5) |
8x8 |
please select from the list |
Multi point diamond dressers consist of numer of diamond particles fixed in wear resistant sintered matrix. A multipoints diamonds in contact with the face of abrasive wheel reduce the mechanical pressure on each diamond grain resulting in longer tool lifetime.
Advantages:
- no resetteting
- more resist to mechanical demage than single point dresser
- higher output
- better performance in wide range of application
The maximum tool life:
- depth of cut should not exceed more than 0,01 - 0,04 mm/pass
- set the multipoints dresser into the center of the grinding wheel
- use the coolant to increase lifetime
- vibration free mounting and clamping as short as possible
Remarks: other dimensions on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
