CBN Flywheel grinding wheel GW 150-COM
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Type: GW 150-COM + dressing stick
special CBN grinding wheel flared sides / cup wheel for grinding and re-grinding flywheels compatible with special grinders for automotive industry.

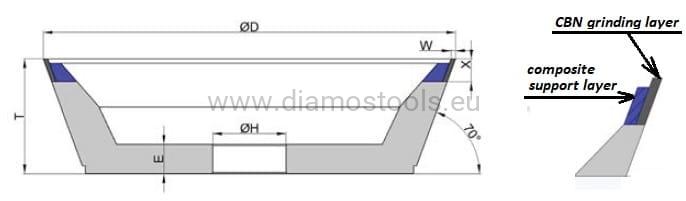

| D | W | X | H | T | E | grain size | remark |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| 150 ( 6") |
4 | 10 | 31.75 (1-1/4") |
65 | 15 | please select in check box | dressing stick included |
The basic grain size:
We offer the flywheel CBN grinding wheel with different CBN grit to meet different working application.
a) CBN grit 60 rough ( FEPA size 251 microns )
b) CBN grit 80 medium-rough ( FEPA size 181 microns )
c) CBN grit 100 medium ( FEPA size 151 microns )
Bond:
This CBN borazon wheel is made with use of special resin bond matrix in 2 hardness level for effective sharpening with different working conditions. The bond hardness and CBN grit size can be selected from the box. The CBN wheel has an aluminum body to keep the stiffness and the CBN abrasive layer is supported by self-dressing composite layer to provide the strengt and reduce the possible vibration during grinding.
a) BX100T hard bond for agressive grinding, intense cooling is recommended, more frequently dressing, long lasting
b) BX105R medium hardness bond for agressive free cutting, standard cooling, long lasting
Application:
This CBN grinding wheel is recommended for cast iron and hardened steel grinding. The CBN wheel work the best with wet conditions. The abrasive stone is needed for cleaning the wheel's abrasive surface and prevent the clogging the CBN wheel.
Certificate:
this product meets the safety standard EN13236 with the maximum speed Vmax = 50 [m/s], V=6500 [1/min].
Phone: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
