CBN Grinding Wheel 11A2 Ø150 mm Tc=27
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

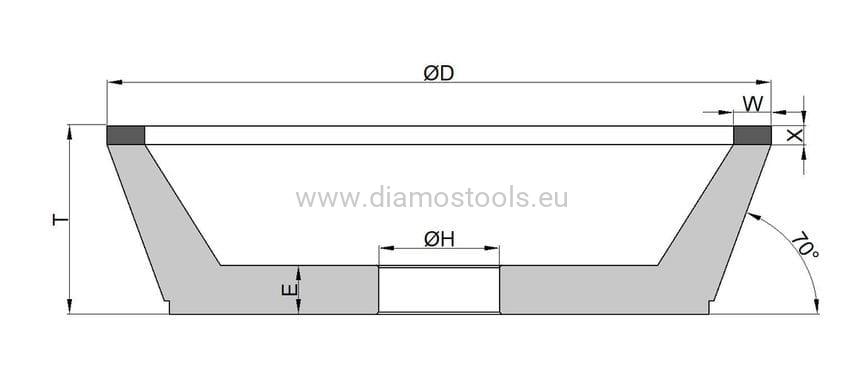

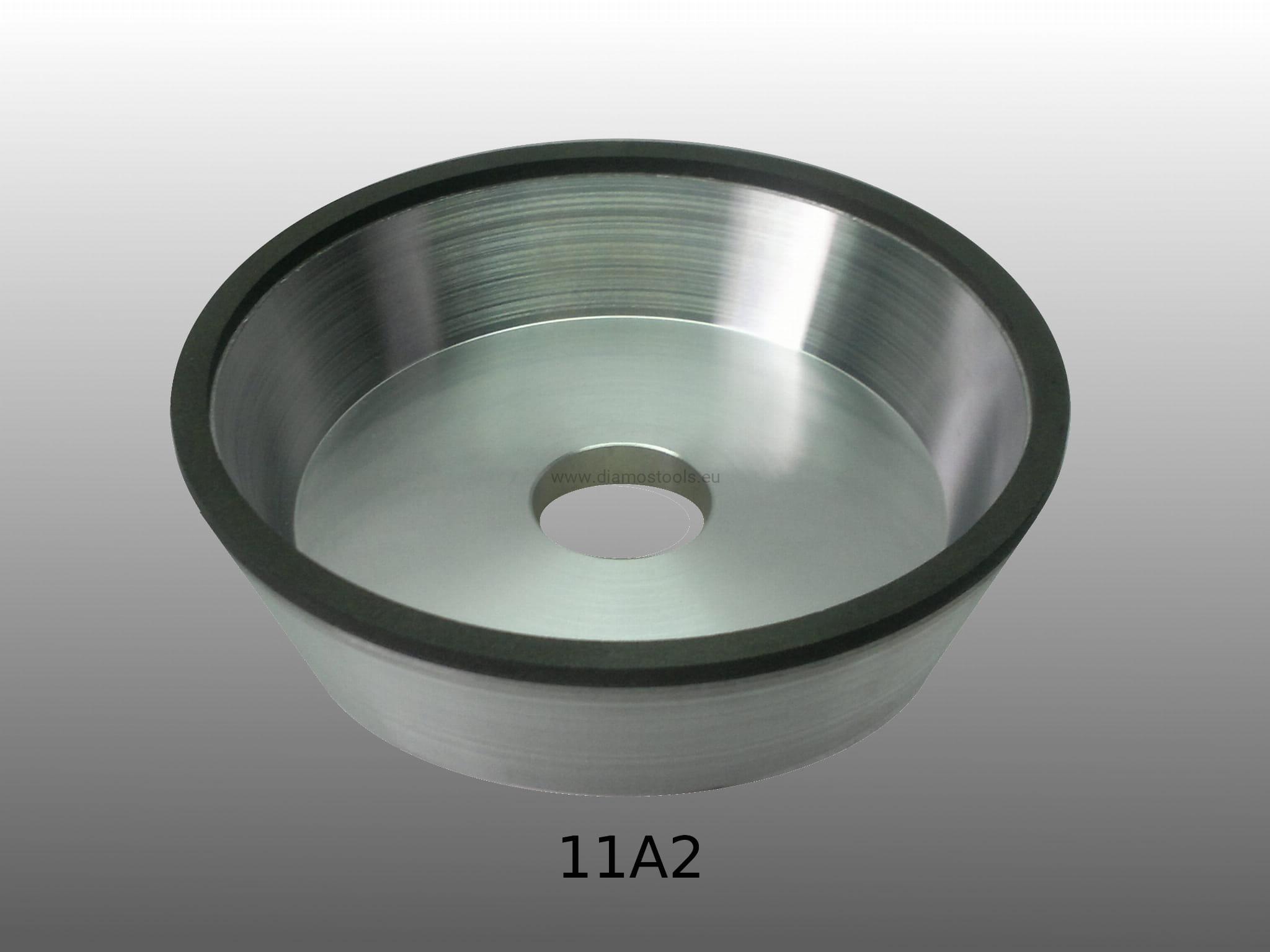

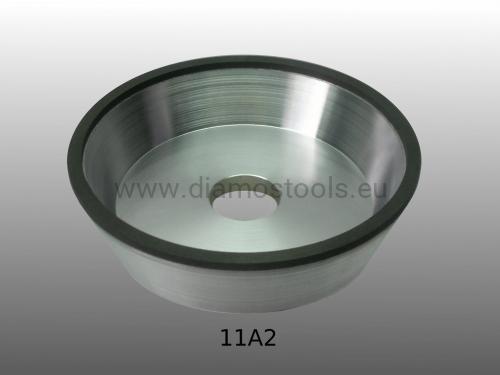

Type: 11A2 CBN cup sharpening and grinding wheel
Vmax = 50 [m/s] safety standard EN 13236
| OD | W - X |
H | T | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 150 | select |
select | 27 | 10 | select |
The grain size: CBN super-abrasive grit ( select )
Bond specification: special resin bond in medium hardness for sharpening of HSS/HSS-Co, high alloyed tool steel over 56 HRC and steel cutting tools with high effeciency
Concentration: C75
Coolant: wet ( recommended )
For DRY application please let us know in comments.
Application: CBN grinding wheel for precision grinding and sharpening of steel / HSS cutting tools.
We can produce other quality on request with different CBN grit sizes and bond quality depend on application.
Please contact us via e-mail:
biuro@diamos.eu
Phone: +48 32 454-40-50
