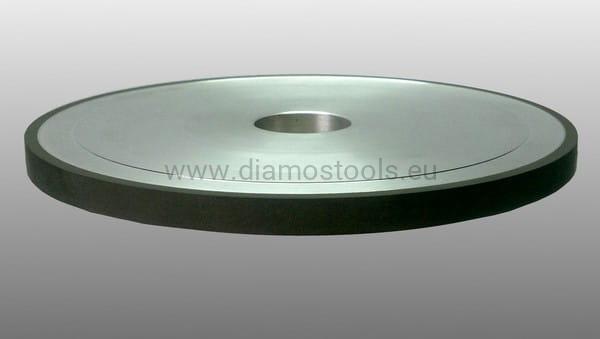

CBN Grinding Wheel 1A1/WSP 200x10x5x60 for Rondamat
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

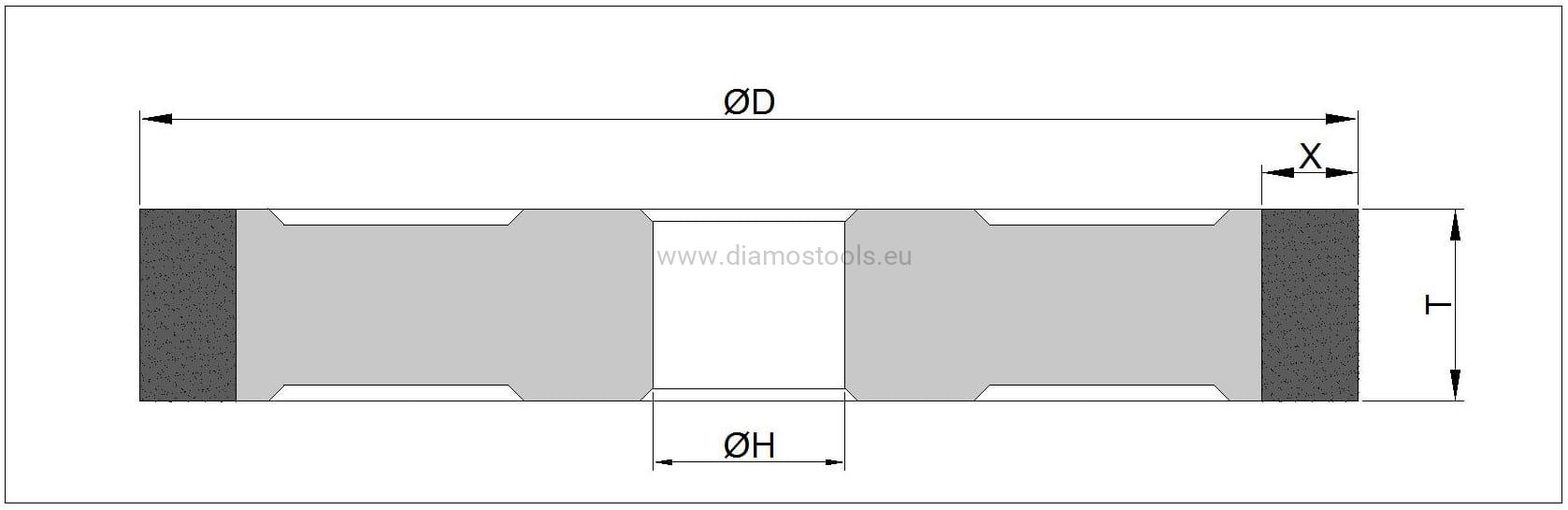

The parameters of the wheel:
Type: 1A1/WSP for straight knives sharpening
| D | X | H | T | grain size |
| [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 200 | 5 | 60 (H7) |
10 | CBN grit please select in the box |
CBN grit: CBN151 (rough) - CBN126 (standard) - CBN46 (finishing)
Concentration: C75
Hardness: special resin bond RB37X - EXPERT
Coolant: wet (recommended)
Application: grinding and sharpening of HSS/HSS-Co/stellite cutting tools, Rondamat tool grinder, grinding wheel line EXPERT.
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
