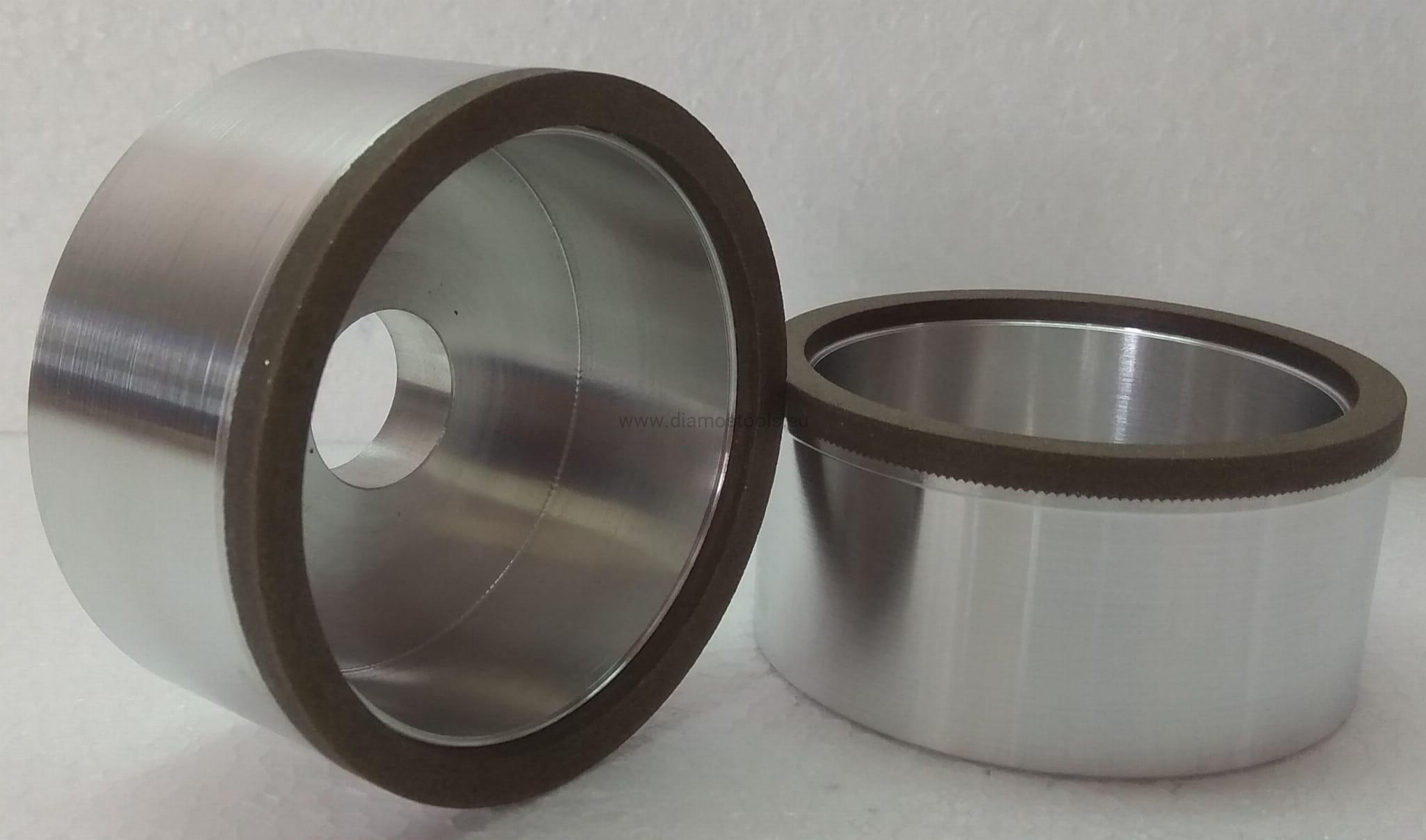

CBN Grinding Wheel 6A2/SP 150x5x5x20 B6X-PRO for circular knives
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Type: 6A2/SP sharpening and grinding wheel
| D | W | X | H | T | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 150 | 5 | 5 | 20 | 50 | 16 | select in the box |
The grain size: CBN251 (very rough ) - CBN181 (rough) - CBN126 (standard) - CBN64 (finishing)
Bond: special resin bond in medium hardness for sharpening HSS / tools steel over 56HRC
Concentration: C75
Coolant: wet ( recommended )
Application: CBN grinding wheel for precision grinding and sharpening of HSS and high alloyed tool steel cutting discs.
We can produce other quality on request with different CBN grit sizes and bond quality depend on application.
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
Remarks: other quality on request please contact us:
