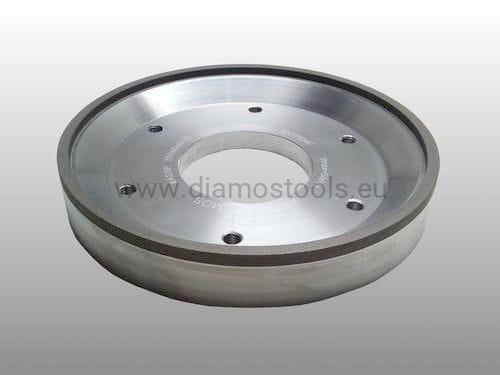

CBN Grinding Wheel 6A2/SP 200x6x6x50 CBN151 C75 B6X-PRO
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

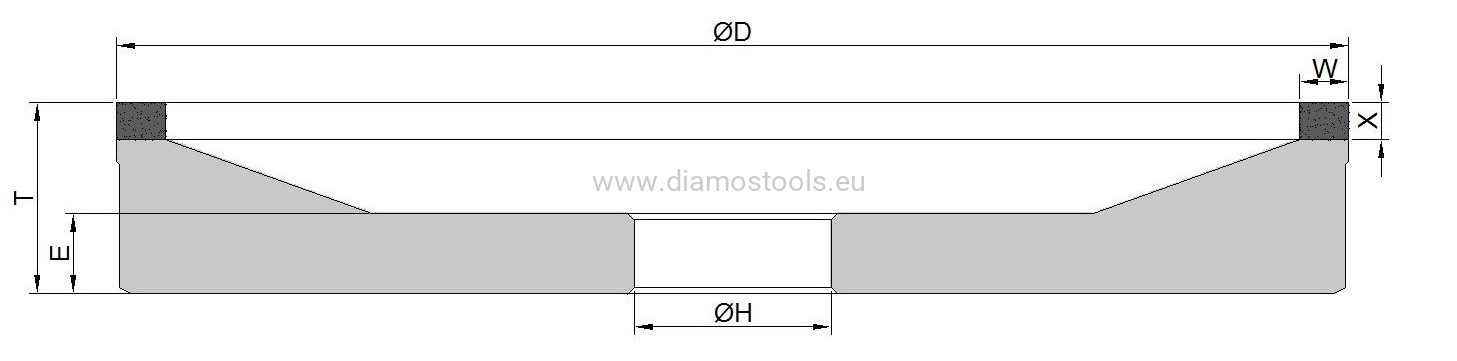

The parameters of the wheel:
Type: 6A2/SP sharpening wheel ( type Gockel replacement )
| D | W | X | H | T | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 200 | 6 | 6 | 50 (H7) |
31 | 13 | CBN151 |
Clamping holes (3 x Fi7 mm)
The grain size: CBN151 for HSS steel blades
Bond: special resin bond with medium hardness
Concentration: C75
Coolant: wet ( recommended )
Application: high effeciency sharpening of HSS high alloyed long planer knives. Relatively cold and sharp grinding with good surface finish and reduced cycle working times.
We can produce different CBN grit sizes and bond hardness depend on working conditions.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
