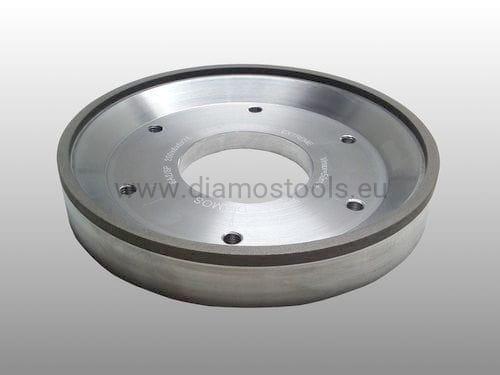

CBN Grinding Wheel 6A2/SP 200x6x6x75 CBN151 C75 B6X-PRO
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

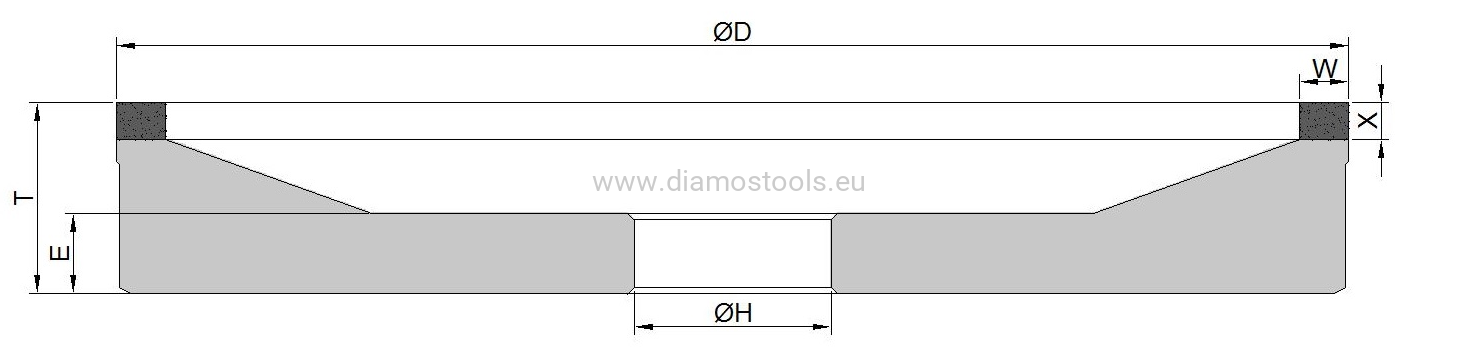

The parameters of the wheel:
Type: 6A2/SP sharpening wheel ( type Reform replacement )
| D | W | X | H | T | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 200 | 6 | 6 | 75 (H7) |
31 | 13 | CBN151 |
Clamping holes ( 6 x M10 thread )
The grain size CBN151
Bond: special resin bond in medium hardness for sharpening of HSS/HSS-Co, high alloyed tool steel over 56 HRC and steel cutting tools with high effeciency
Concentration: C75
Coolant: wet ( recommended )
Application: high effeciency sharpening of HSS high alloyed long planer knives. Relatively cold and sharp grinding with good surface finish and reduced cycle working times.
We can produce different CBN grit sizes and bond hardness depend on application and working conditions.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
