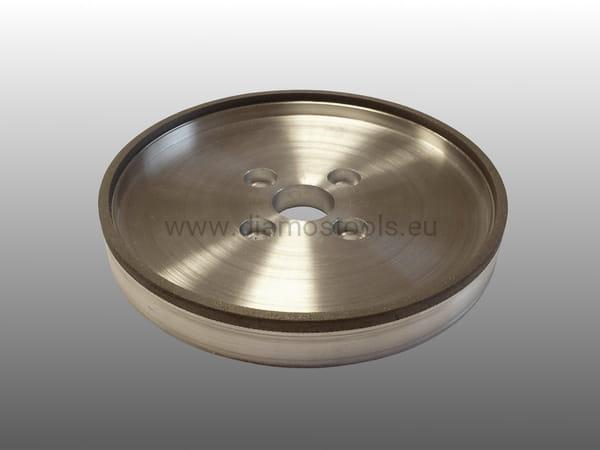

CBN Grinding Wheel 6A2/WSP 125x3x4x20 EXPERT + 4 holes for Rondamat R960
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
The parameters of the wheel:
Type: 6A2/WSP + 4 clamping holes
| D | W | X | H | T | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 125 | 3 | 4 | 20 |
18 | 11 |
CBN grit please select in the box |
CBN grit: CBN151 (rough) - CBN107 (standard) - CBN64 (finishing)
Concentration: C85
Hardness: special resin bond with medium/hard bond RB37X - EXPERT
Coolant: wet (recommended)
Application: wheel is designed for use on Rondamat or similar grinder from the highest qaulity of indredients. The general application for grinding and sharpening of HSS/HSS-Co/stellite cutting tools, saw tooth back grinding on Rondamat tool grinder, grinding wheel line EXPERT.
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
Remarks: do you have a special requirements, please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
