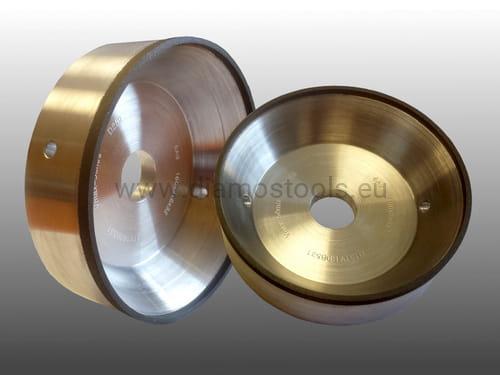

CBN Grinding Wheel 6A9/SP 125x2x6x32 ( + 2 holes ) CBN151 RB381X Quick
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
The parameters of the wheel:
Type: 6A9/SP special grinding wheel for steel punch and dies grinding in Tool Grinder Quick

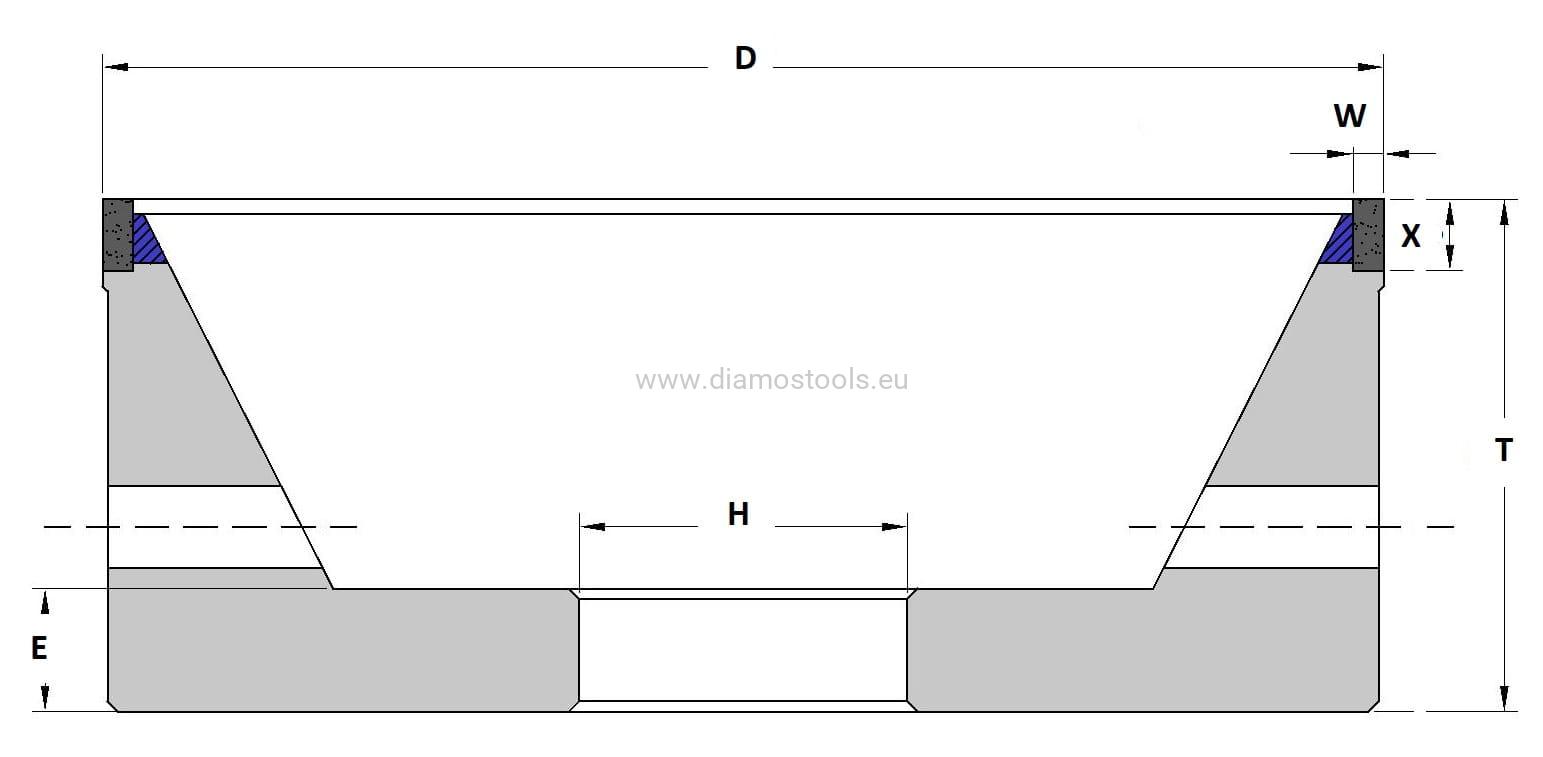

| D | T | W | X | E | H | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 125 | 50 | 2 |
6 |
12 | 32(H7) | CBN151 |
Hardness: special resin bond series RB381X optimal
Coolant: wet ( recommended )
The safety standard according to norm EN13236 - Vmax=50m/s
Grain size:
B151 - standard
Application:
This CBN grinding wheel 6A9/SP is dedicated for special Tool Grinder Quick for sharpening of high alloyed hardened tool steel punch and dies. The CBN 6A9/SP wheel offers an efficient, precise and long lasting grinding and sharpening process.
We can offer different CBN grain size as follows: CBN46 - CBN76 - CBN126 and bond hardness.
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
