CBN Wheel 6A2/SPKN 175x15x4x50 Tc=55 CBN181 C75 B6X-PRO
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Type: 6A2/SPKN special grinding wheel for grind mincer blades, knives, plates ( equivalent for Knecht grinder ).
| D | W | X | H | T | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 175 | 15 | 4 | 50 (H7) |
55 | 13 | CBN181 C75 B6X-PRO |
The basic grain size: CBN181 ( for fast and sharp grinding ) - other CBN grain sizes available on request.

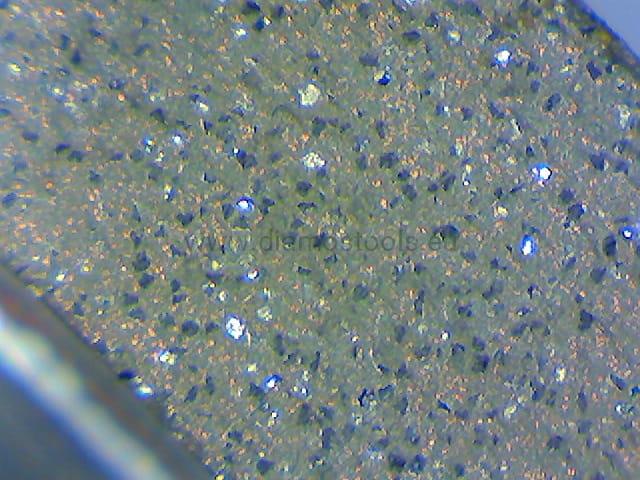

Bond: special resin bond B6X-PRO matrix in medium hardness for effective sharpening
Concentration: C75
Coolant: wet ( recommended )
Application: CBN grinding wheel for precision grinding and sharpening of HSS and high alloyed tool steel cutting discs.
Manufacturer: DIAMOS Poland
Certificate:
this product meets the safety standard EN13236.
We can produce other quality on request with different CBN grit sizes and bond quality depend on application.
Please ask on e-mail:
Phone: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
