CBN grinding wheel 11B9/SP 125x3x6,5x32 CBN126 C75 N B27X
Availability:
Production of 7-10 working days
Rating:
0
0
Vendor:
Product code:
12723
Description

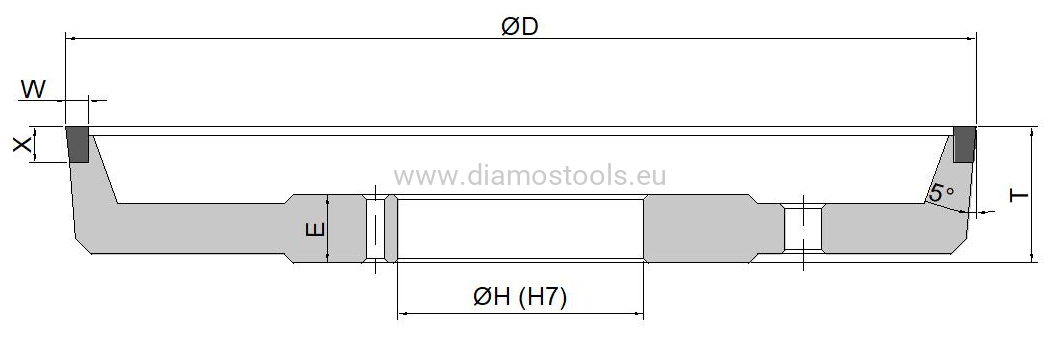

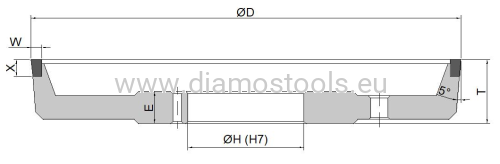

The parameters of the wheel:
Type: 11B9/SP
| D | T | W | X | H | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 125 | 18 | 3 |
6,5 |
32 (H7) | 11 | CBN126 |
Concentration: C75
Coolant: wet
Application: CBN grinding wheel for clearance back sharpening of HSS-stellit saws, universal quality, medium hardness.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
