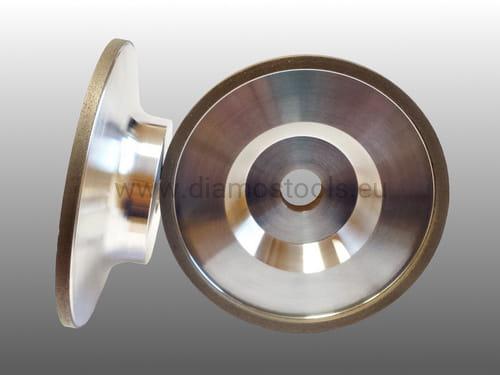

CBN grinding wheel 15A2/SP 150x5x4x20 CBN126 C75 BW265X
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

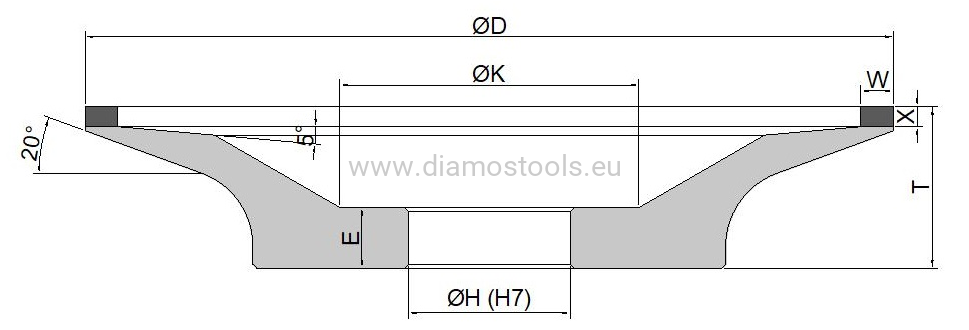

Type: 15A2/SP
| D | W | X | H | T | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 150 | 5 | 4 | 20 (H7) |
27 | 10 | CBN126 |
Concentration: C75
Coolant: wet
Remarks: other quality on request please contact us (B46-B64-B76-B91-B107-B126-B151-B181).
Application: CBN grinding wheel for HSS-stellit sharpening, universal quality,
medium hardness resin bond BW265X.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
