CBN grinding wheel 1A8 12x10x3
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Type: 1A8

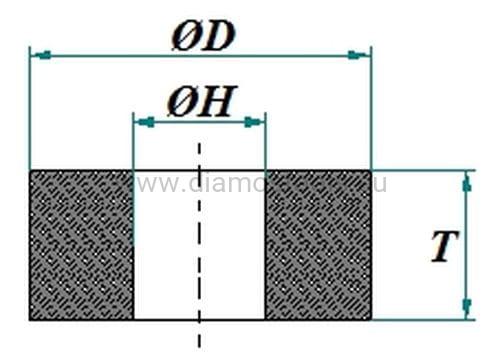

| D | T | H | grain size |
| [mm] | [mm] | [mm] | (FEPA) |
| 12 | 10 |
3 | select in the box |
CBN grain size: please select in the box
CBN grit: CBN181 (rough) - CBN126 (standard) - CBN64 (finishing)
Bond: resin bond medium hardness ( dry / wet ) BRUN series
CBN concentration: C75
Application:
special resin bond in medium hardness for sharpening of HSS/HSS-Co, high alloyed tool steel over 56 HRC and steel cutting tools with high effeciency. CBN grinding wheel for precision grinding and sharpening of steel cutting tools.
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
Remarks: other quality on request please contact us:
