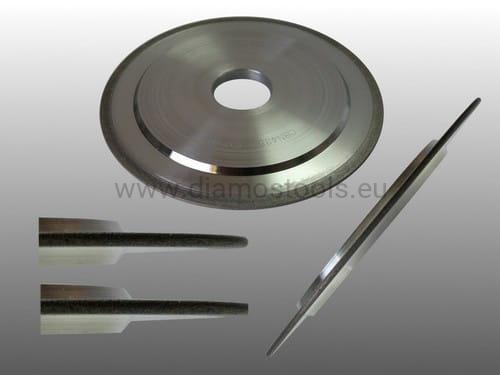

CBN151 Grinding Wheel 14A1/WSP 200x3x5x60 CBN151C85R B38
Availability:
Production of 7-10 working days
Gross price:
excl. shipping costs
175.00
Net price:
€175.00
excl. shipping costs
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
1114
Description
The parameters of the wheel:
Type: 14A1/WSP EXPERT ( type Rondamat replacement wheel )
| D | U | X | H | T | J | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 200 | 3 | 5 | 60(H7) |
5,5 | 145 | CBN151 |
The grain size: CBN151 standard sharpening
Concentration: C85
Hardness: special resin bond RB38 with medium/hard
Coolant: wet ( recommended )
Application: CBN grinding wheel is intended for sharpening of HSS/HSS-Co/stellite cutting tools, Rondamat tool grinder and similar grinder, wheel series EXPERT.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
