Diamond Grinding Wheel 11A2 100x10x4x20 C75 BW205X Tc=27
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

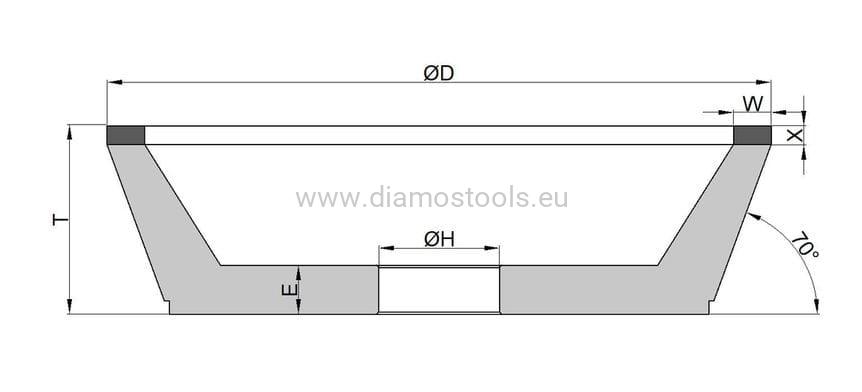

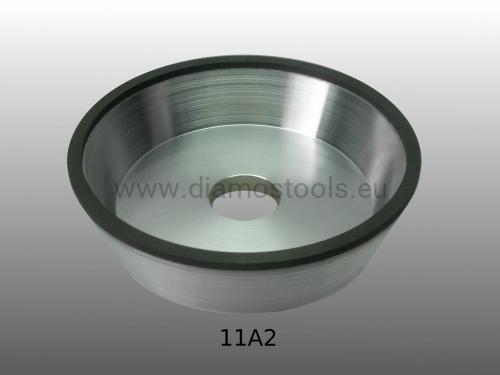

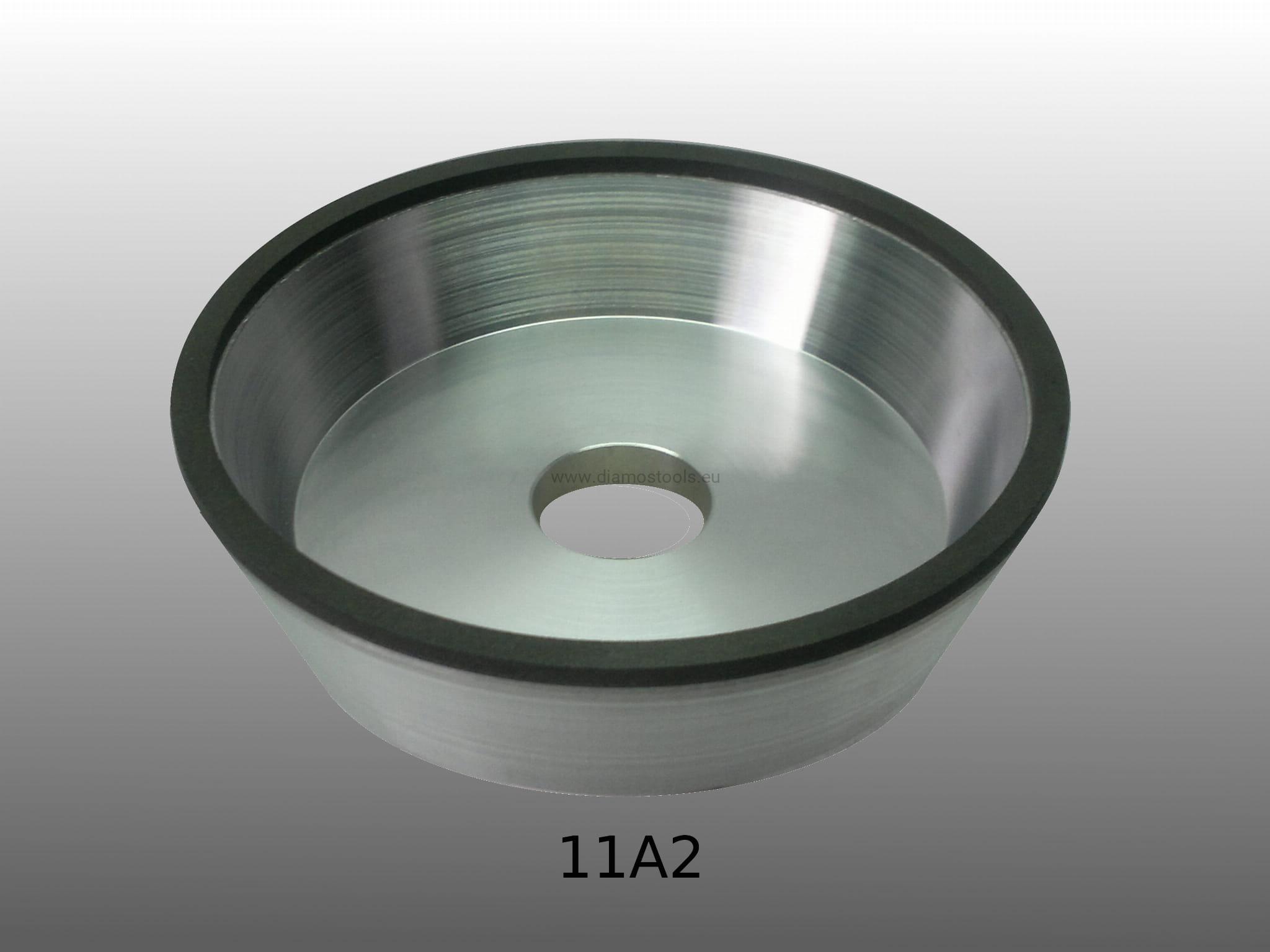

Type: 11A2 diamond sharpening and grinding wheel
| D | W | X | H | T | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 100 | 10 | 4 | select in the box |
27 | select in the box |
The grain size: select in the box
Bond: special resin bond BW205X medium hardness for sharpening of carbide / HM cutting tools with high effeciency.
Concentration: C75
Coolant: wet ( recommended )
Application: Diamond grinding wheel for precision grinding and sharpening of carbide HM cutting tools.
We can produce other quality on request with different DIAMOND grit sizes and bond quality depend on application.
Please ask on e-mail:
Phone: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
