Diamond Grinding Wheel 12A2/20 Ø125 layer 10x4
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

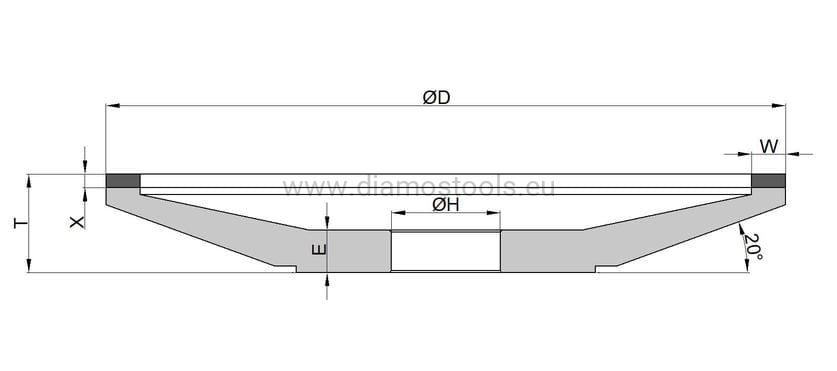

Type: 12A2/20 - 125 mm with layer 10 x 4 mm
diamond sharpening and grinding wheel
| D | W | X | H | grain size |
| [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 125 | 10 | 4 | select in the box |
select in the box |
Diamond grit size (FEPA): please select in the box
Quality: please select in the box
Application: 12A2/20 diamond dish grinding wheel for cemented carbide sharpening with resin bond is very good choice for wide range of demanding applications.
The safety standard according to norm EN13236 - Vmax=50m/s
Please note company DIAMOS Poland produce different quality grinding wheels made on request with diversified grits and bond quality depend on application.
Please ask on e-mail:
Phone: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
