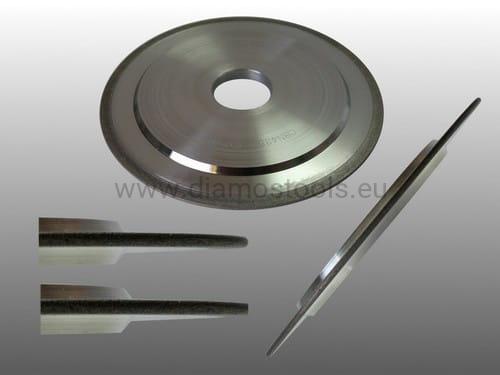

Diamond Grinding Wheel 14F1/WSP 200x3x5x60 DIA181 C100 RB31
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
The parameters of the wheel:
Type: 14F1/WSP EXPERT ( type Rondamat replacement wheel )
| D | U | X | H | R | T | J | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 200 | 3 | 5 | 60(H7) |
1,5 | 5,5 | 145 | DIA181 |
Vmax = 50 [m/s] safety standard EN 13236
The grain size: DIA181 rough sharpening
Concentration: C100
Hardness: special resin bond RB31 with medium/hard
Coolant: wet
Application: diamond wheel is intended for grinding and sharpening of carbide HM/VHM cutting tools, square top, Rondamat tool grinder and similar, diamond grinding wheel series EXPERT.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
