Diamond Grinding Wheel 4B9/SP2 100x3x1,8x25 DIA76 C125 B361X
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

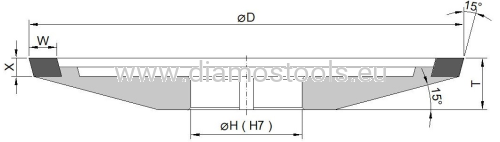

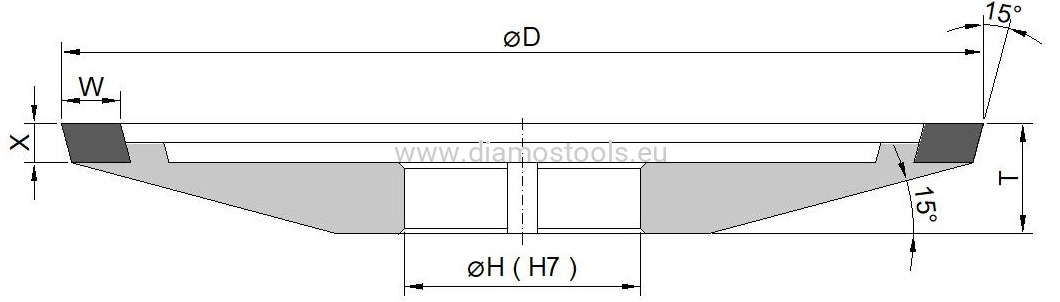

Type: 4B9/SP2
| D | T | W | X | H | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 100 | 8 | 3 |
1,8 |
25 + groove | 7 | DIA76 |
Vmax = 50 [m/s] safety standard EN 13236
Concentration: C125
Hardness: B361X EXPERT special hard resin bond
Coolant: wet
Application: diamond grinding wheel for cemented carbide sharpening , universal quality semi finishing, medium hardness.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
