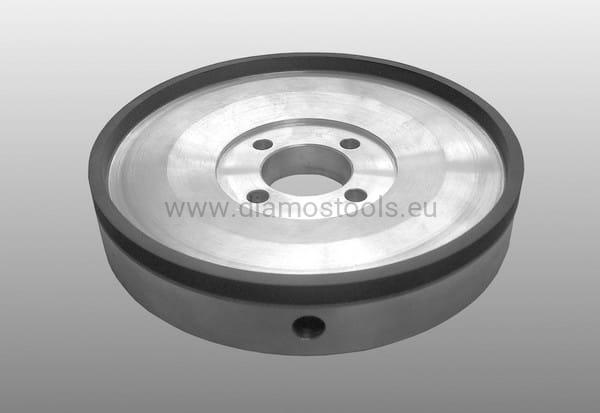

Diamond Grinding Wheel 6A2/AT 135x5x5x30 ( + 4 holes ) DIA RB657X for punch and die grinding

Availability: On request
Gross price: €162.00
excl. shipping costs
Net price: €162.00
excl. shipping costs
quantity pcs

product unavailable

add to wish list
* - Field mandatory

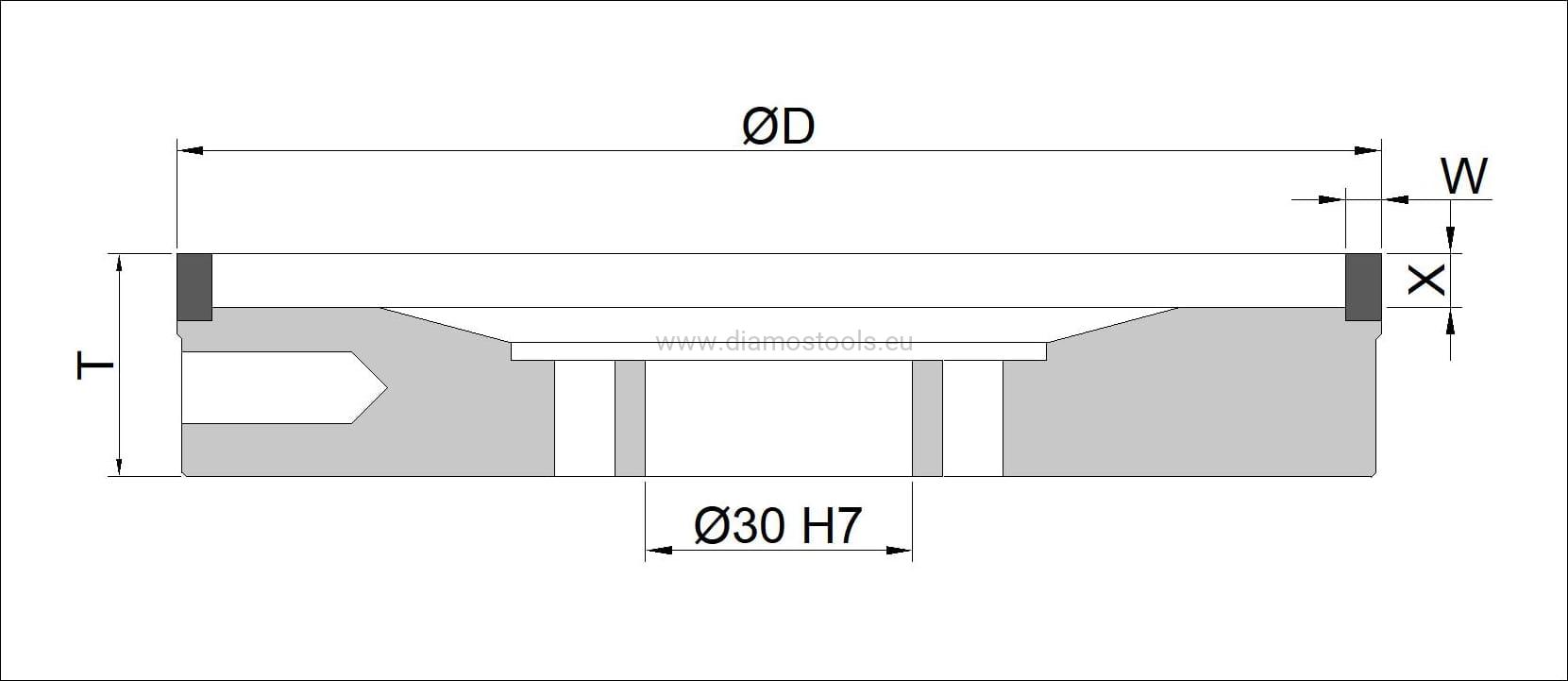

The parameters of the wheel:

Type: 6A2/AT special diamond grinding wheel only for CARBIDE punch and dies grinding - TOGU grinder.

( Please note: if you use steel punch /dies you need CBN wheel - see the CBN punch and die wheel )

D T W X H grain size
[mm] [mm] [mm] [mm] [mm] (FEPA)
135 25 5
30(H7) please select

Hardness: special resin bond series RB657X optimal

Coolant: wet ( recommended )

The safety standard according to norm EN13236 - Vmax=50m/s

Grain size:

DIA 76 - fine

DIA 91 - medium standard

DIA 126 - medium coarse

Application:  special diamond grinding wheel is intended for high effecient, precision and relatively cool grinding of CARBIDES punch and dies in TOGU grinder.

The optimal special resin bond composition and DIAMOS abrasive with coating offer sharp cutting with no thermal demage, high G-ratio and self-sharpenig when properly use.



The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.

Remarks: other quality on request please contact us:

biuro@diamos.eu and www.diamos.eu

Tel.: +48 32 441 69 90
