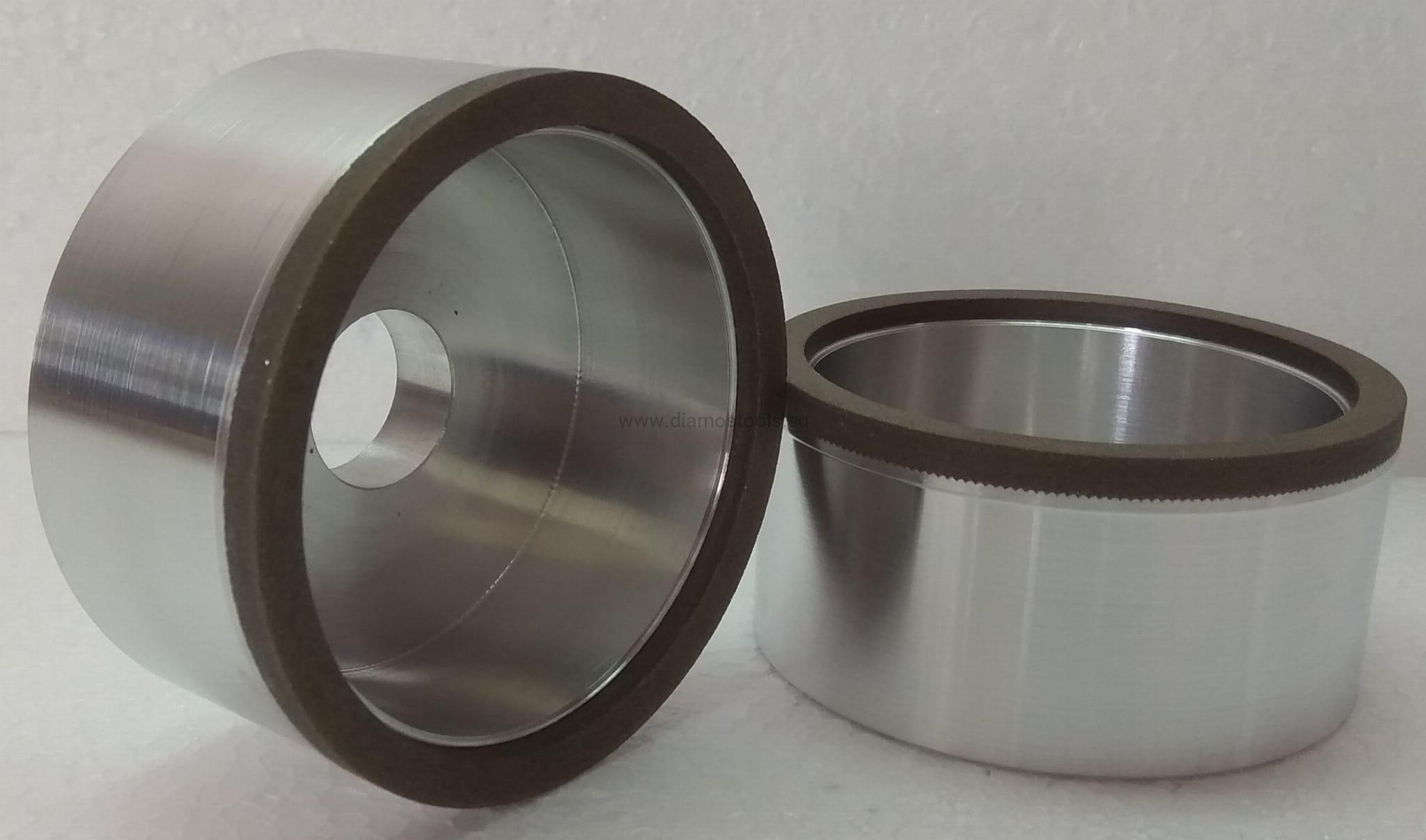

Diamond Grinding Wheel 6A2/WAD 100x33x20mm for planer knives ( HM carbide )
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Type: 6A2/WAD 100x33x20 sharpening and grinding wheel for planer knives made of carbide HM (equivalent to NZ / NU grinder GW303 - fit to WADKIN) .
| D | W | X | H | T | E | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 100 | 8 | 4 | 20 | 33 | 10 | please select the diamond grit size |
The grain size:
DIA 151 (FEPA) rough and semi-rough sharpening
DIA 107 (FEPA) precision standard sharpening
DIA 64 (FEPA) finishing sharpening
( other grit size available on request - please ask on e-mail )
Bond: special resin bond BGW303 for sharpening of carbide HM planer knives with high effeciency
Concentration: N/A
Coolant: wet ( recommended )
Application: Diamond grinding wheel for precision grinding and sharpening of carbide HM cutting discs and long knives.
Manufacturer: DIAMOS Poland
Certificate:
this product meets the safety standard EN13236.
We can produce other quality on request with different DIAMOND grit sizes and bond quality depend on application.
Please ask on e-mail:
Phone: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
