Diamond Wheel 1A1/95-NTR 100x5x23,6 for tungsten TIG electrodes

Availability: On request
Gross price: €148.00
excl. shipping costs
148.00
Net price: €148.00
excl. shipping costs
quantity pcs

product unavailable

add to wish list
* - Field mandatory
Rating: 0
Vendor: DIAMOS SP. J.
Product code: 117330_20240225152411

Description

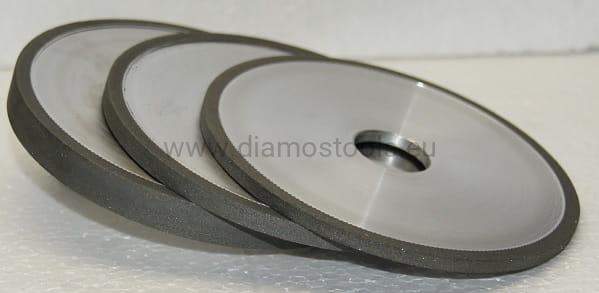

Type: 1A1/95-NTR 100x5x23,6 diamond wheel for TIG electrodes

The high performance long life diamond grinding wheel for precision sharpening of tungsten welding TIG electrodes.

Aluminum core for stiffness machining.

Center arbor hole diameter H = 23,6 [mm]

D T X H     grain size
[mm] [mm] [mm] [mm]     (FEPA)
100 5 5 22,6 (H7)
    please select in the check box


The basic grain size:

please select the diamond grain size.

1-107-B1XM -  standard diamond grain size / effective sharpening with good roughness quality

1-076-B1XF - fine diamond grain size / smooth sharpening with very good surface quality

Bond:

special resin bond matrix B1XM / B1XF for tungsten sharpening result in long lasting grinding with the optimum performance.

Application:

We offer very wide range of DIAMOND grinding wheel for precision grinding and sharpening of tungsten welds electrodes TIG for different grinders.

On request we produce diamond wheels with different grains and bonds hardness to meet demanding electrodes sharpening process.

Please ask on e-mail:

Certificate:

this product meets the safety standard EN13236.

Vmax = 9500 [1/min]   Vmax = 50 [m/s]


biuro@diamos.eu

Phone: +48 32 441 69 90



Information:

The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.



Neutra  TIG diamond grinding wheel
