Diamond grinding wheel 14M1 175x5x8x32 DIA126/46 C100/75 R B30X
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

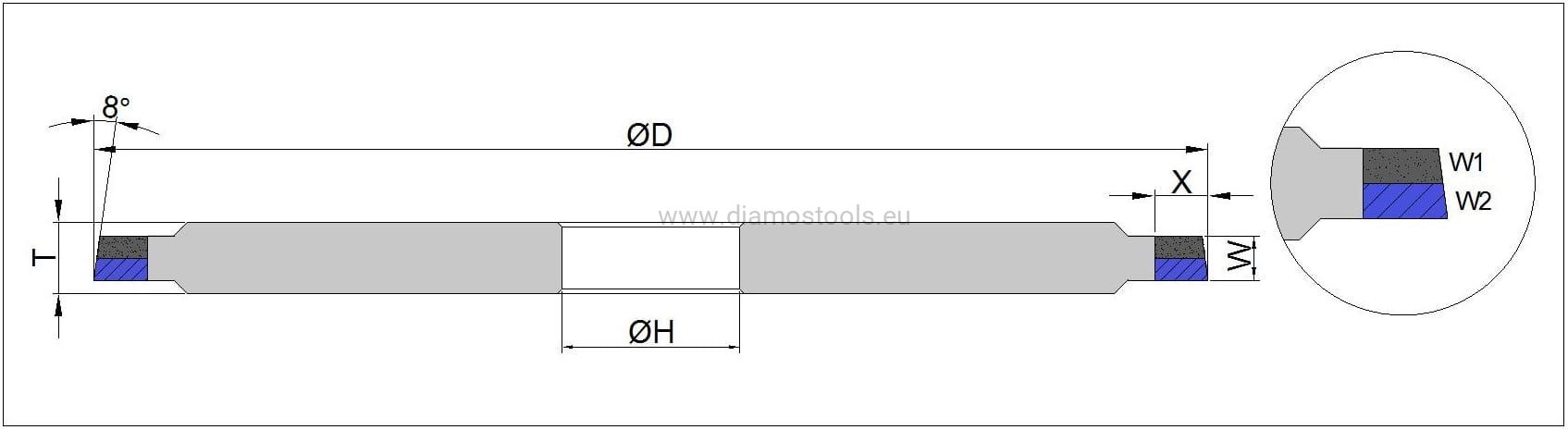

The parameters of the wheel:
Type: 14M1 ( 2 layers diamond wheel )
| D | T | X | H | W | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 175 | 8 | 8 | 32 |
5 | DIA126/46 |
Vmax = 50 [m/s] this product meets the safety standard EN13236.
top angle = 8 deg
Concentration: C100/75
Hardness: RB30X - medium hard resin bond
Coolant: wet
Application: sharpening of carbide tipped circular saws, back grinding, grinding wheel line EXPERT.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
