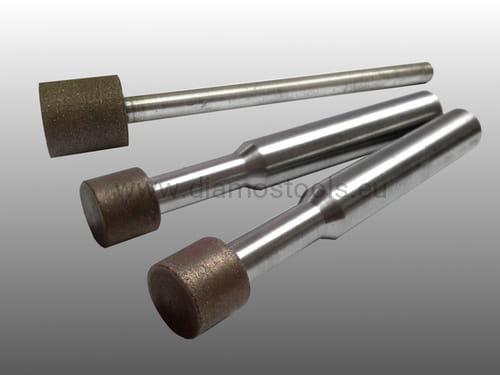

Diamond grinding wheel 1A1W 10x10/6x75 DIA107 C75 BR
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

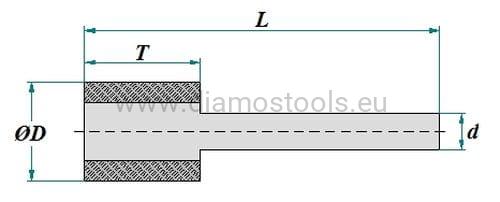

The parameters of the wheel:
Type: 1A1W
| D | T | L | d | grain size |
| [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 10 | 10 |
75 | 6 | DIA107 |
Vmax = 35 [m/s] safety standard EN 13236
Concentration: C75
Coolant: wet
Application: diamond grinding wheel for cemented carbide sharpening, universal quality semi finishing, medium hardness.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies
