Diamond grinding wheel 4V2 175x4x2x50,8 ( + 1 hole ) DIA76 C125 B361X
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

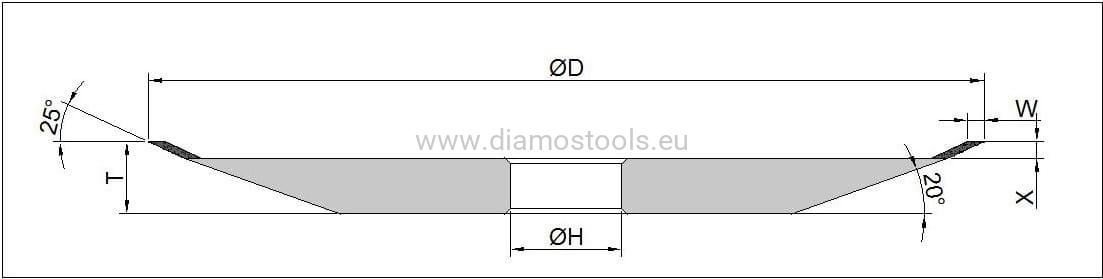

The parameters of the wheel:
Type: 4V2/20
| D | X | H | T | E | W | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 175 | 2 |
50,8 (+ 1 hole) |
12 | 12 | 4 |
DIA76 |
Vmax = 50 [m/s] safety standard EN 13236
Concentration: C125 other quality ( 46 - 64 - 76 - 91 - 107 - 126 ) on request please contact us
Hardness: B361X EXPERT with hard resin bond
Coolant: wet

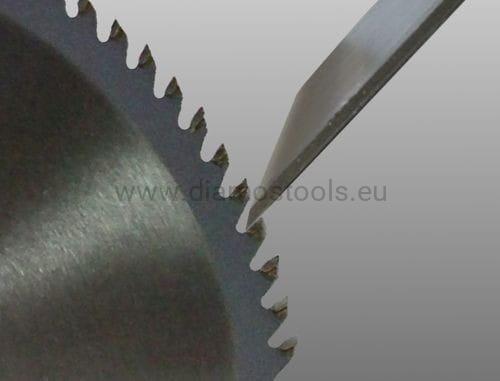

Application: sharpening of face carbide tipped circular saws, grinding wheel line EXPERT.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
