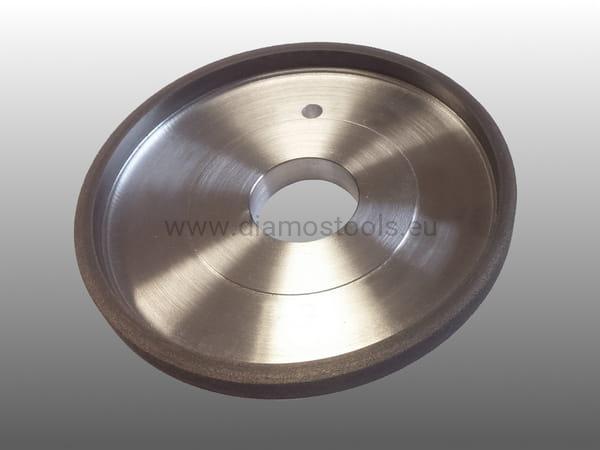

Diamond grinding wheel 6AV5/2WX 125x5x6x50,8 DIA126/46 C100/75 N B22
Availability:
Production of 7-10 working days
Rating:
0
0
Vendor:
Product code:
1149
Description

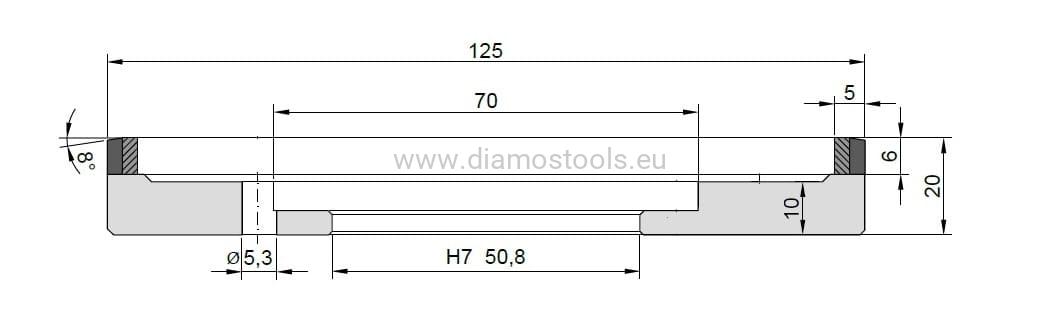

The parameters of the wheel:
Type: 6AV5/2W
| D | X | H | T | E | W | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 125 | 6 | 50,8 | 20 (+2 holes) |
10/4 | 5 (2,5+2,5) |
DIA126/46 |
deg = 8
The grain size: DIA126/46
Concentration: C100/75
Hardness: N - medium standard
Coolant: wet
Application: sharpening of carbide tipped circular saws, back grinding, grinding wheel line EXPERT.
Machine type: Finimat Gamma, Beta, Alpha
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
