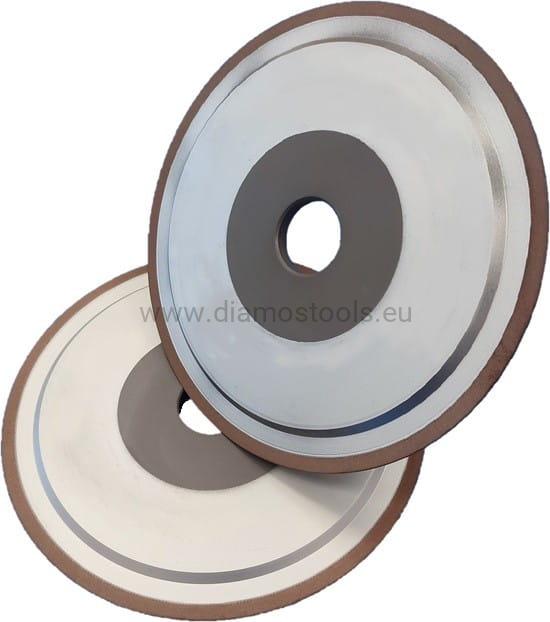

Grinding Wheel 14F1 TS 200x1,3x6/8x32 R=0,65 CBN107
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
This is a special line of CBN grinding wheels EVO developed to grind and sharpening circular HSS and Stellit cutting saws. Optimal designed bond offers durability and high profile stable compared to standard bonds.
The parameters of the wheel:
Type: CBN Grinding Wheel ( saw sharpening and re-profile )

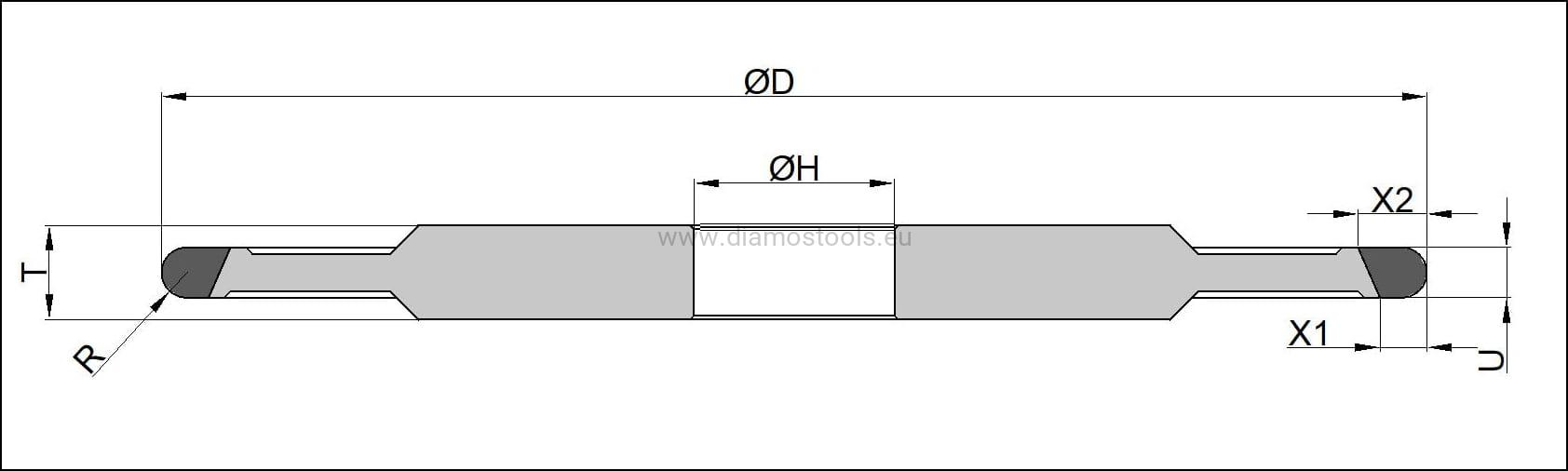

Shape: 14F1/TS1 - 200x1,3x6/8x32 R0,65
Quality: CBN107-EVO
| D | U | X1 | X2 | H | R | T | grain size |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | (FEPA) |
| 200 | 1,3 | 6 | 8 | 32 | 0,65 | 8 | CBN107-EVO |
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels, customized grinding wheels for grinding and sharpening, diamond tool dressers with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels and the all diamond tool dressers are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
