M2010 - 1,0 ct in-line diamond dresser multi points

1,0 ct multi points in-line 5 diamond dresser

Availability: Production of 7-10 working days

Dispatched within: 48 hours

Gross price: €75.00

excl. shipping costs

Regular price:

75.00

Net price: €75.00

excl. shipping costs

Regular price:

* Shank type:

quantity pcs

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor:

Product code: 6674

Description

M2010 - 1,0 ct in-line multi points diamond dresser

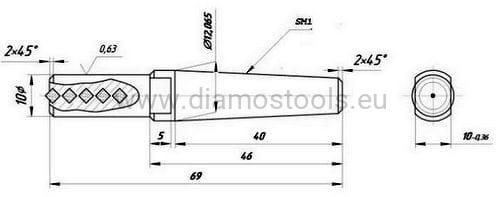

Type: multi-points/multi grains in-line diamond dresser type M2010 ( Diamos designation )

No of Diamonds: 5 x 0,2ct= 1,0 ct

Shank: Morse taper or cylindrical ( please select )

This dressing tool is intended for high effeciency dressing of conventional vitrified/ceramic bond grinding wheel made of aluminium oxide and silicon carbides.

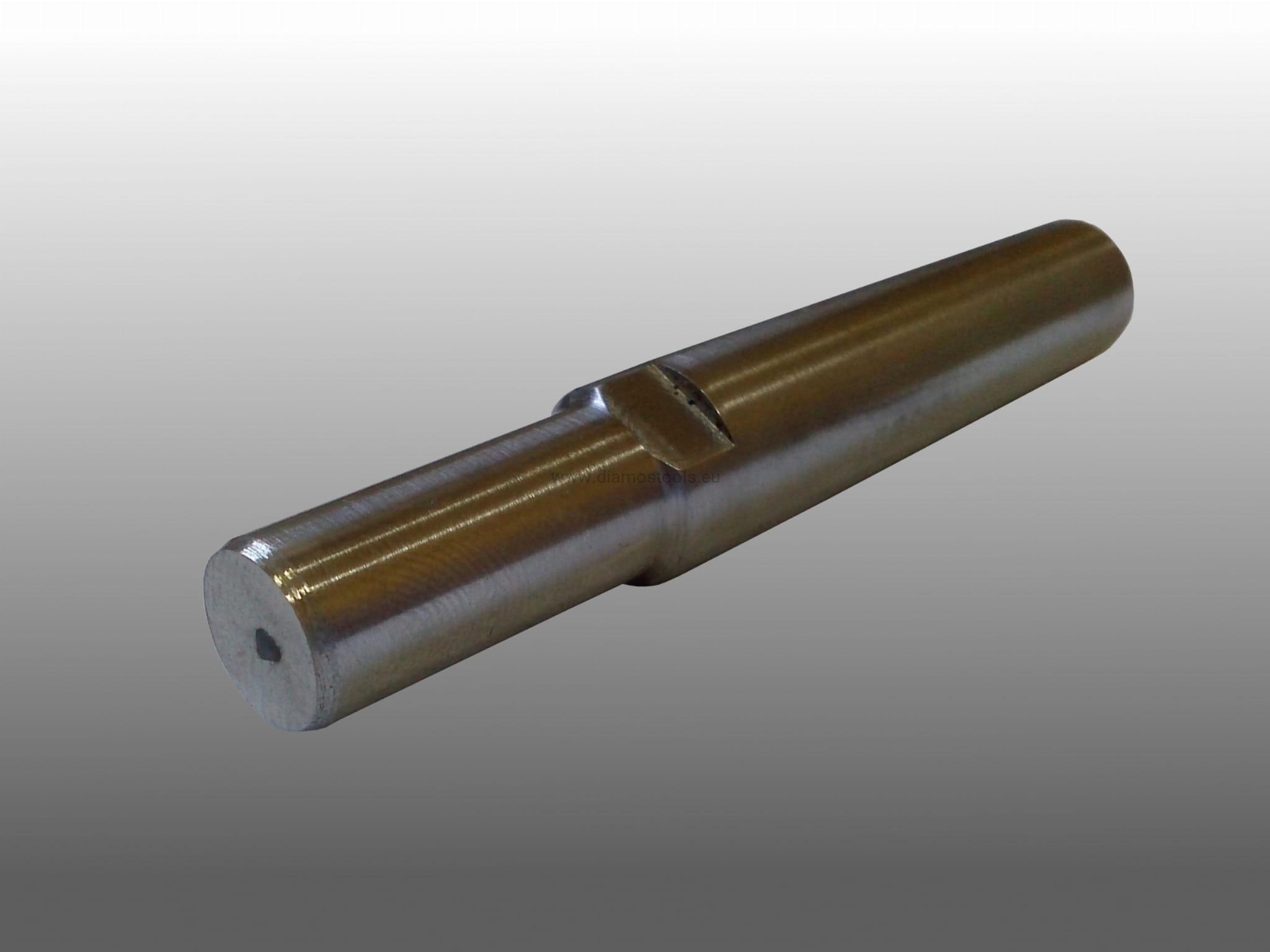

Diamond dresser is composed from 5 diamonds concetricaly set in the sintered matrix. No resetting is required, when the first diamond has worn the next new diamond is visible.

There is possibility of various applications.

General information for use:

please note the diamonds are sensitive to knock, impact and thermal shock so take a special care when fitting and use this dressing tool.

Dressers must be clamped short and vibration free. Before start of dressing ensure that coolant is applied into the diamond.

The general infeed: 0,005 – 0,02 mm per stroke

The longitudinal feed depend on the grit size of the grinding wheel

- faste feed result in rough the wheel surface,

- low feed result is smoother the wheel surface.

Wheel's grain size

Feed mm/u

30-46 (54)

54-120 (150)

180-320

0,5-0,65

0,1-0,35

0,02-0,15

Remarks: other quality on request please contact us:

biuro@diamos.eu and www.diamos.eu

Tel.: +48 32 441 69 90
