ND (0,25-1,5)ct Single point diamond dresser with natural diamond

Availability: Lead time 1 week

Dispatched within: 48 hours

Gross price: €46.00

excl. shipping costs

Regular price:

46.00

Net price: €46.00

excl. shipping costs

Regular price:

* Natural Diamond size [ct]:

quantity pcs

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor:

Product code: 332

Description

ND (0,25 - 1,5)ct Single point diamond dresser with natural diamond

This diamond dressing tool is intended for high effeciency dressing of conventional vitrified/ceramic bond grinding wheel made of aluminium oxide AlxOx and silicon carbides SiC, abrasive grits range (36 - 400) FEPA with hardness range (F - P ) grade.

Type: single point - model M1010/SM1 ( Diamos designation )

Diamond size: 0,25 - 1,50 ct (please select in the box )

Diamond quality: very good industrial selected diamond with 3 working points

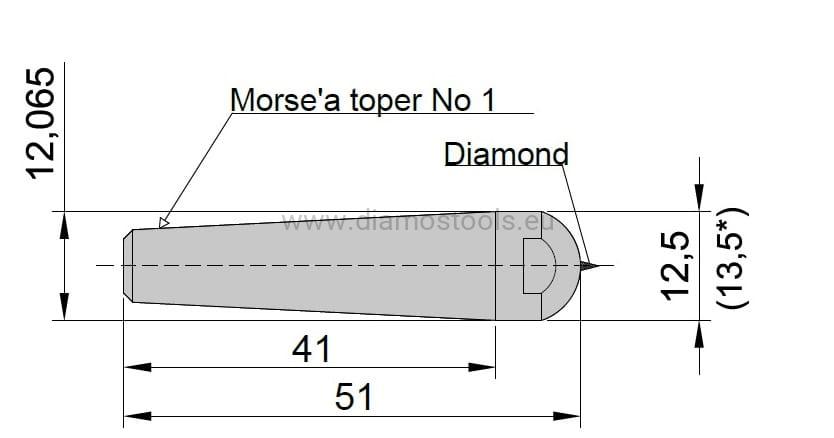

Shank: Morse taper No 1 (MT1/SM1/MK1)

Additional feature: re-mounted is possible 1 or 2 times (when used correctly)

General information for use:

please note the diamonds are sensitive to knock, impact and thermal shock so take a special care when fitting and use this dressing tool.

Dressers must be clamped short and vibration free. Before start of dressing ensure that coolant is applied into the diamond.

The general infeed: 0,005 – 0,02 mm per stroke

The longitudinal feed depend on the grit size of the grinding wheel

- faste feed result in rough the wheel surface,

- low feed result is smoother the wheel surface.

Wheel's grain size

Feed [mm/u]

30-46 (54)

54-120 (150)

180-320

0,5-0,65

0,1-0,35

0,02-0,15

Remarks: other quality and dimensions are available on request - please contact us.

biuro@diamos.eu and www.diamos.eu

Phone: +48 603 117 776
