Precision Diamond pins DP8-Ø3,175 for drawing die
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

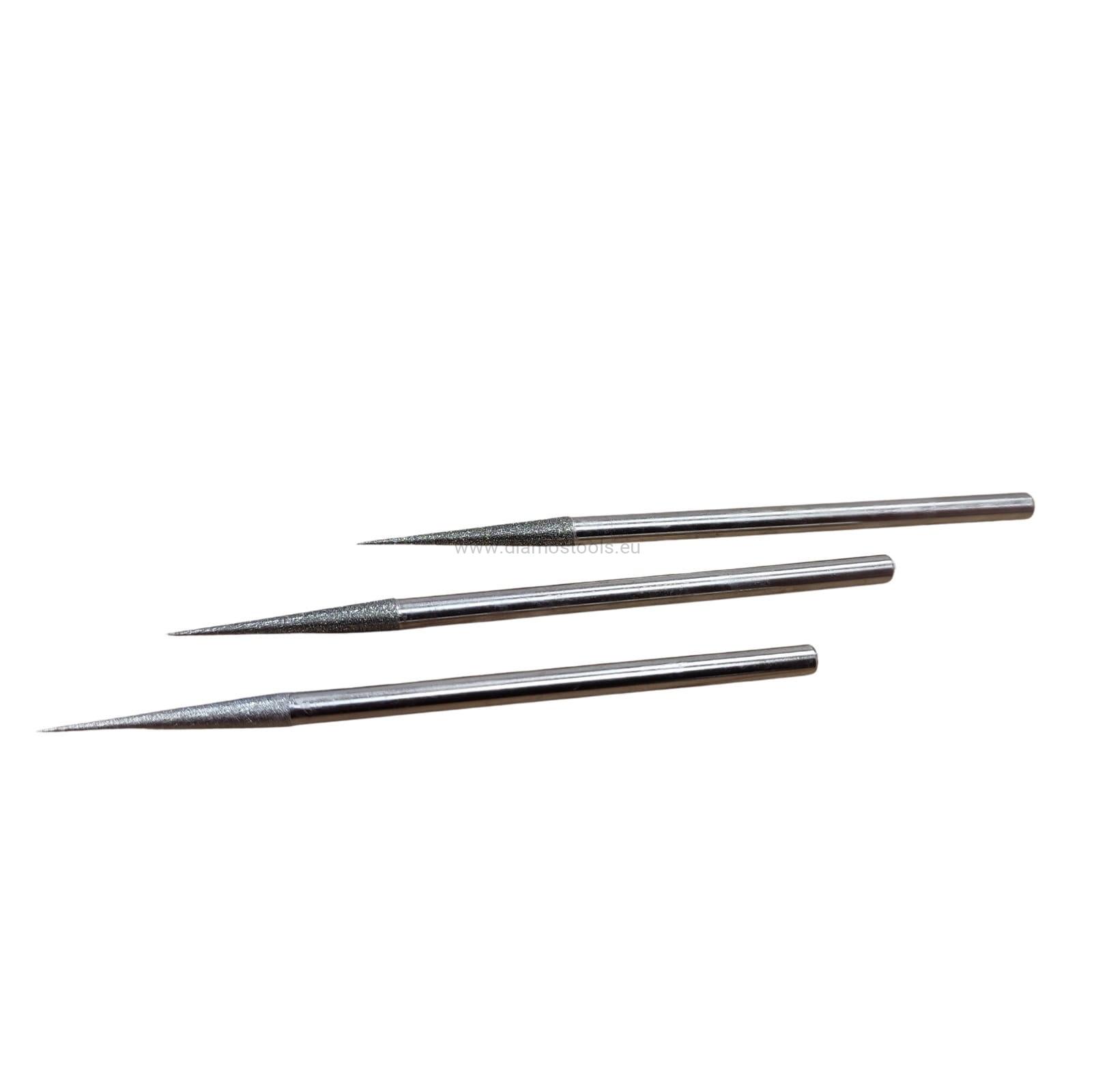

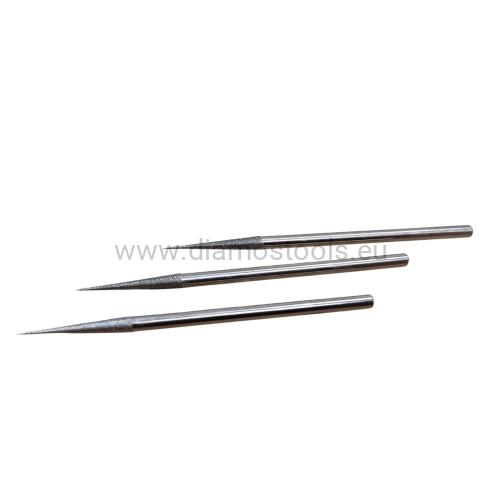

Precision Diamond plated tapered pins DP8-Ø3,75 for drawing dies

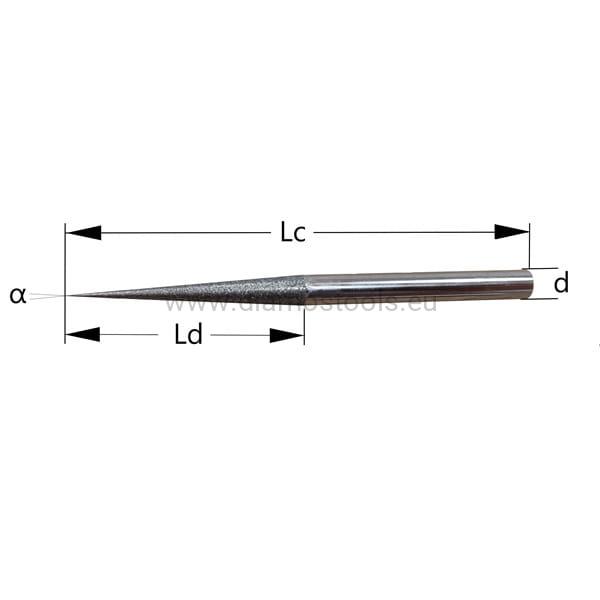

Overall length Lc = 76 [mm]
Diamond length Ld = 23 [mm]
Grit ( FEPA ) DIA107
Shank d = Ø3,75 [mm]
Angle α = 8°
Diamond plated tapered pins are ideal for grinding or ripping tungsten carbide drawing
dies for the wire and tube industries. It is also used for cold heading dies machining.

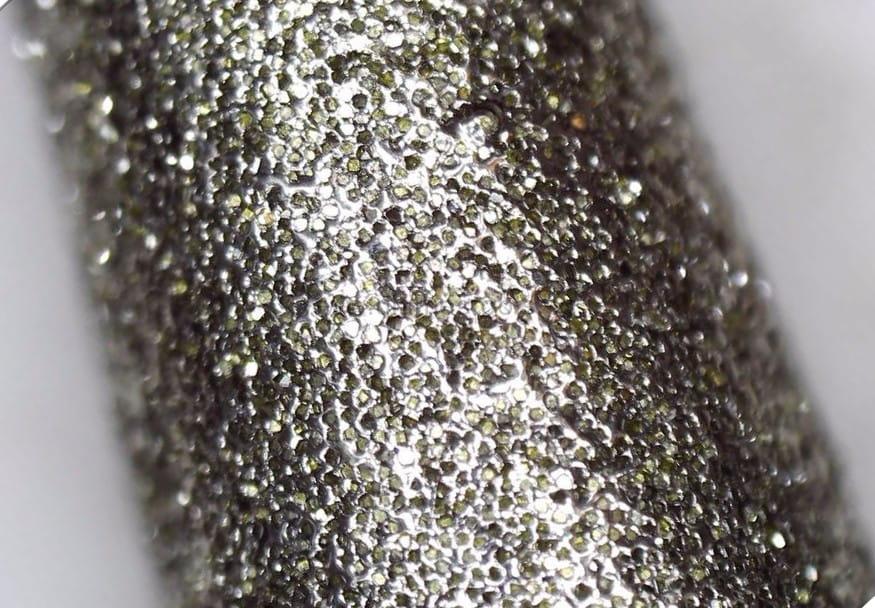

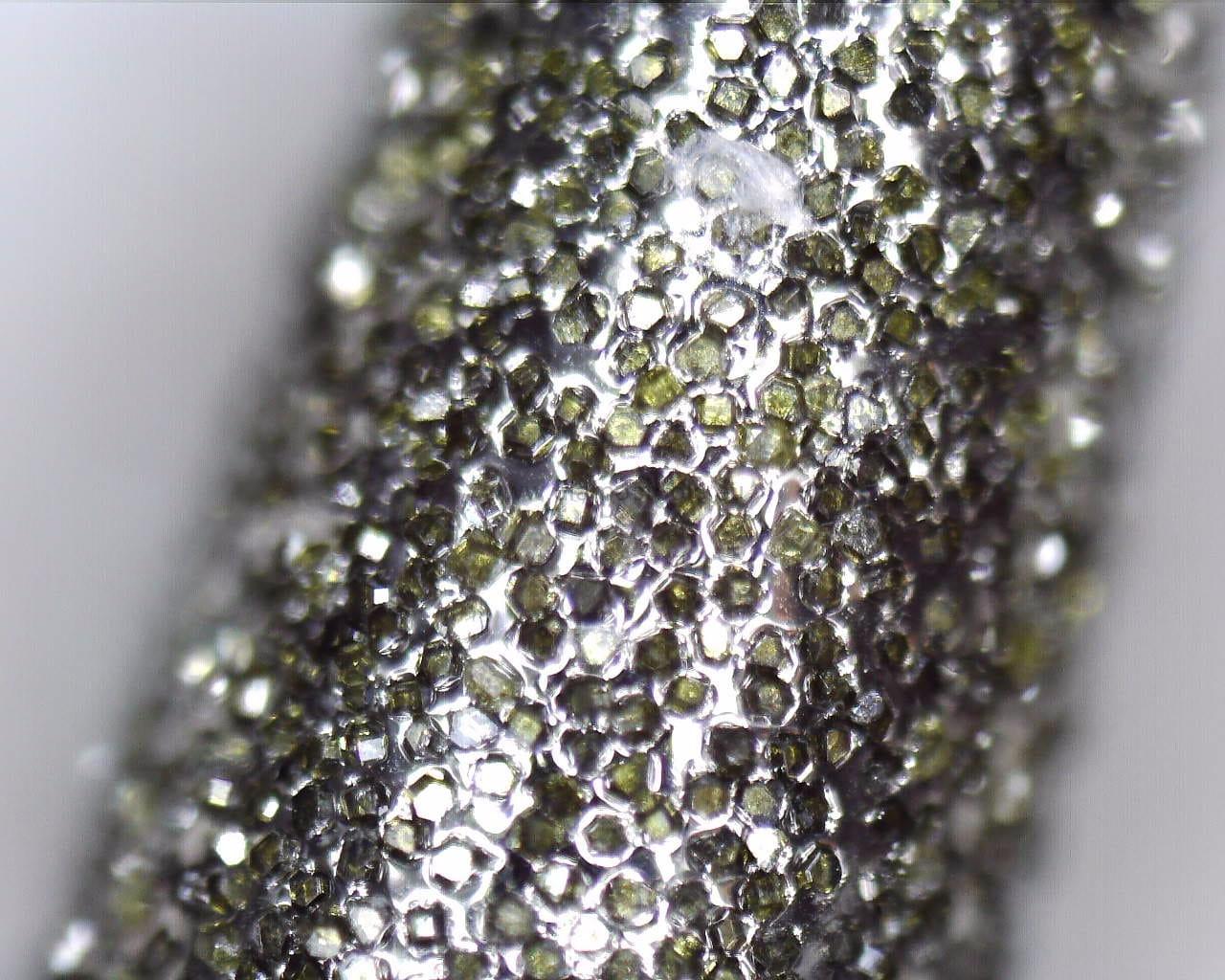

Diamond pins with a precisely positioned electropplated diamond layer offer fast, efficient and precise
grinding process.
On request we offer also different diamond pins with
- top angle cone 8-10-12-16-20
and
- diamond grits coating D46 - D64 - D91 - D107 - D126 - D151
- option with CBN coating also.
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
