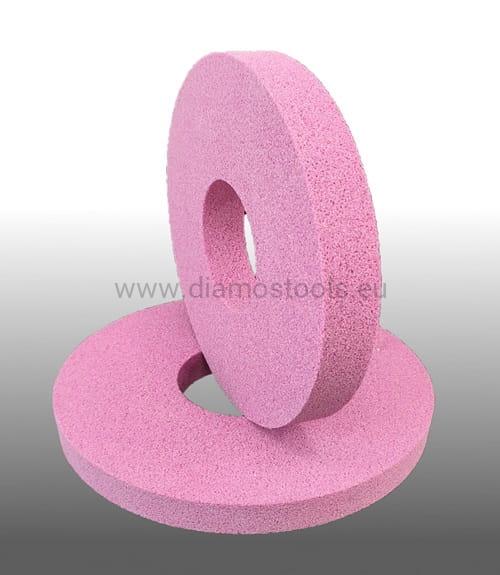

T1-350x40x127 mm PROGRESS+ Surface Grinding Wheel

Straight vitrified ceramic bond surface grinding wheel for low and high alloyed tool steelel

Type:  1 / T1

Diameter: OD = 350 mm

Thickness: T = 40 mm

Internal hole: H = 127 mm

Quality: 66A 46J7V2EC   Vmax=40 [m/s]  Vmax=2185 RPM

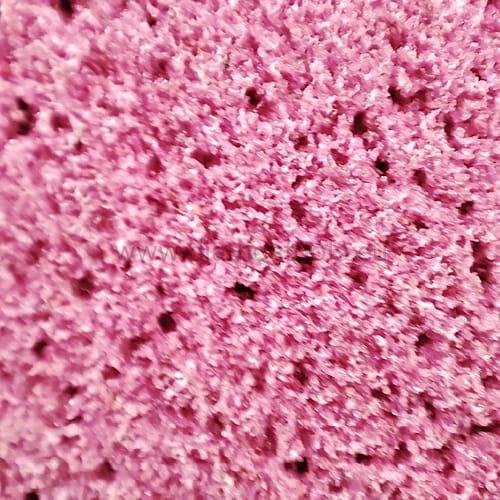

Structure: mix abrasives with a little bit open porosity ensure effecient and cooler grinding and less clogging tendency. The porosity structure system reduced thermal loading and minimal dressing and conditioning necessity.

Application:

PROGRESS+ - line of precision reciprocating grindig wheel designed for use on surface grinding machines.

Ideal for machining of heat treated and hardened steel up to 58HRC

for example: carbon steel, medium / high alloyed steel, tool steel, powder metal PM steel

There is possible to grind soft steel and aluminium.

Please note:

the final results depend on material to be ground and grinding conditions and working parameters for example wheel speed, wheel feed, cross feed, material to be ground, cooling etc.

Please ask on e-mail:

Certificate:

this product meets the safety standard EN12413 for bonded grinding wheels.

(*) Please note the all products are in continuous sale and it may happen that the product has already been sold
