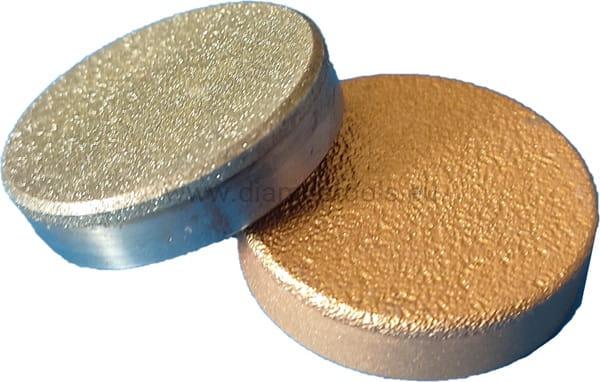

Diamond 1A2/SPC Dresser
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
1A2/SPC5012 GAL-PRO and 1A2/SPC5012 VAC-PRO
Special diamond dressing plate 1A2/SPC is recommended for surface / flat grinding machines
High-performance diamond dressing plate is use for truing and dressing of resin bond ( GAL-PRO ) and vitrified bond (VAC-PRO) diamond and CBN grinding wheels.
Diamond dressing plate can be mounted on the magnetic surface grinding table.
The DIA / CBN grinding wheel can be move can move longitudinally and transversely with approximately 200-500 mm/min. The infeed of the grinding wheel Ae = 0.002 - 0.01 mm / pass (depending on grit size).
Cooling is recommended during truing and dressing to improve the machining process.
Important: subsequent sharpening of resin bonded diamond DIA and CBN grinding wheels with abrasive stone is necessary ( to final clean and open the wheel's surface ).
The final result strongly dependent on the machining parameters, the DIA/CBN grit size and the type of bond in the grinding wheel.
Characteristics:
Type: 1A2/SPC
Shape: round
Size: Ø50x12
Coating: electroplated diamond coating (GAL) / vacuum diamond coating (VAC)
Product recommended for resin-bonded grinding wheels (please select in the box):
- 1A2/SPC5012/20X GAL-PRO for grinding wheels with grit DIA/CBN (107-181) microns
- 1A2/SPC5012/40X GAL-PRO for grinding wheels with grit DIA/CBN (213-301) microns
Product recommended for vitrified bond grinding wheels (please select in the box):
- 1A2/SPC5012/20 VAC-PRO for grinding vitrified bond wheels with grit DIA/CBN (107-181) microns
Remarks: other quality on request please contact us:
biuro@diamos.eu and www.diamos.eu
Tel.: +48 32 441 69 90
Information:
The company DIAMOS manufacture and supply very good quality superabrasive wheels, replacement wheels and customized grinding wheels for grinding and sharpening with our brand DIAMOS. The all superabrasive grinding diamond and CBN wheels are engineered and manufactured according to DIAMOS’ technology to be interchangeable with other products and are not OEM parts. The names of the original equipment manufacturers reffered to on this site are all registered trademarks of their respective companies.
